Sure Flow 10 Inch Ductile Iron Foot Valve with Flanged Connections
Sure Flow 10 Inch Ductile Iron Foot Valve with Flanged Connections
SKU:DOU-6691b7
Sure Flow 10'' Ductile Iron Foot Valve for municipal and industrial applications. Reliable closure with uninterrupted flow.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Sure Flow 10 Inch Ductile Iron Foot Valve with Flanged Connections
$899.99
Quantity: 1
Claim Your Seller Account
Sure Flow 10 Inch Ductile Iron Foot Valve with Flanged Connections
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow FVCEXF125 10 Inch Ductile Iron Elastic Swing Foot Valve with Flanged End Connections is a reliable choice for municipal and industrial applications. Featuring a durable ductile iron body with ASME Class 125 flanges and epoxy coating, this valve ensures optimal performance. The one-piece molded disc with a steel reinforced insert offers secure closure while allowing uninterrupted flow. With a Cv of 2,440 and a WOG temperature rating of 200 psi, this valve is designed for continuous flow applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
The one-piece disc hinge and flapper can be repaired without removal of the valve from the line. The Elastic Swing Foot Valve is designed for continuous flow applications and is not recommended for reciprocating pumps. The Elastic Swing Foot Valve can be installed in a vertical or horizontal pipeline.

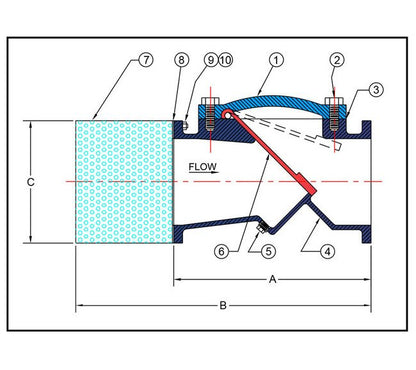

Construction Construction
Item - 1Description - CoverItem - 2Description - Cover BoltsItem - 3Description - GasketItem - 4Description - Cast BodyItem - 5Description - DrainItem - 6Description - DiscItem - 7Description - Screen AssemblyItem - 8Description - Plate FlangeItem - 9Description - StudsItem - 10Description - Nuts
Dimensions Dimension A
24 1/2 in
Dimensions Dimension B
31 in
Dimensions Dimension C
16 1/4 in
Dimensions Drain Size
2 1/2 in
Dimensions Prefix Size
1000
Dimensions Shipping Weight
630 lb
Dimensions Size
10 in
Dimensions Valve Flow Coefficient Cv
2,440
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Valve comes standard with 1/8" pert. Stainless Steel Screen. Options are available.Horizontal Flow: Valve must be installed with cover on top to ensure proper operation.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
200 psi
Specifications Material
Ductile Iron
Specifications Orientation
Horizontal | Vertical
