Sure Flow 12-Inch Bleed & Flushing Ring
Sure Flow 12-Inch Bleed & Flushing Ring
SKU:LIN-1f91e1
Sure Flow 12-Inch Bleed & Flushing Ring: ASME Class 150 standard, 1480 psi at 100°F, versatile taps for water, oil, gas applications.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Sure Flow 12-Inch Bleed & Flushing Ring
$399.99
Quantity: 1
Claim Your Seller Account
Sure Flow 12-Inch Bleed & Flushing Ring
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

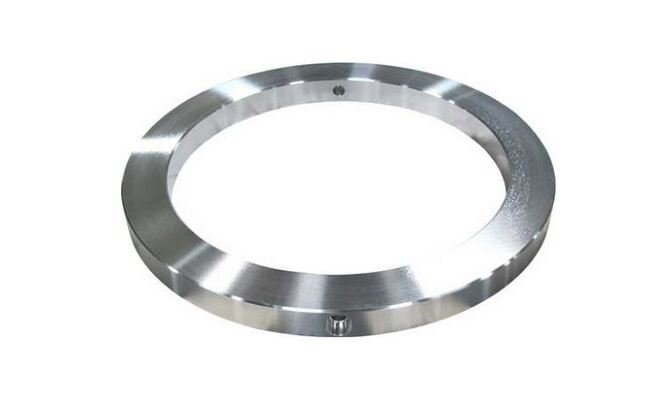

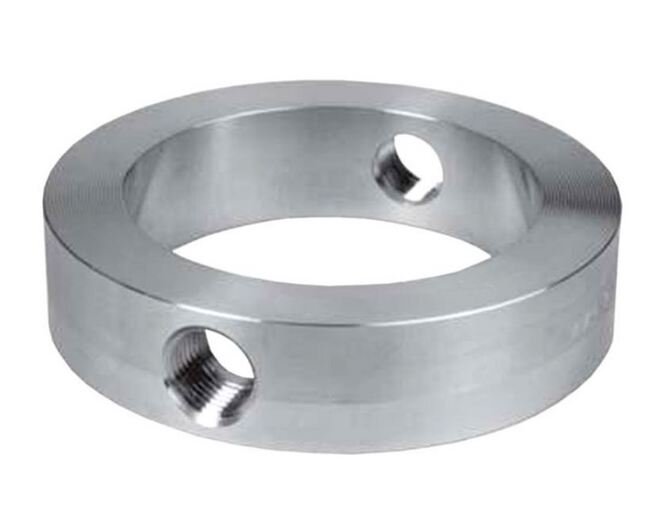

Experience exceptional durability and reliability with Sure Flow Equipment's 12-inch Bleed & Flushing Ring. Crafted from premium Carbon Steel material and meeting ASME Class 150 standards, this ring can withstand pressures up to 1480 psi at 100°F. With threaded or socket-weld taps and compatibility with water, oil, and gas applications, this ring ensures optimal performance in a variety of settings. Sure Flow Equipment follows strict ASME standards in production to guarantee top-notch quality.
Product Specifications
Additional Information Additional Information
Sure Flow Equipment Bleed Rings and Flushing Rings are produced in strict accordance with the following codes of practice:ASME B16.5ASME B16.20ASME B16.47 (For larger diameter flanges)

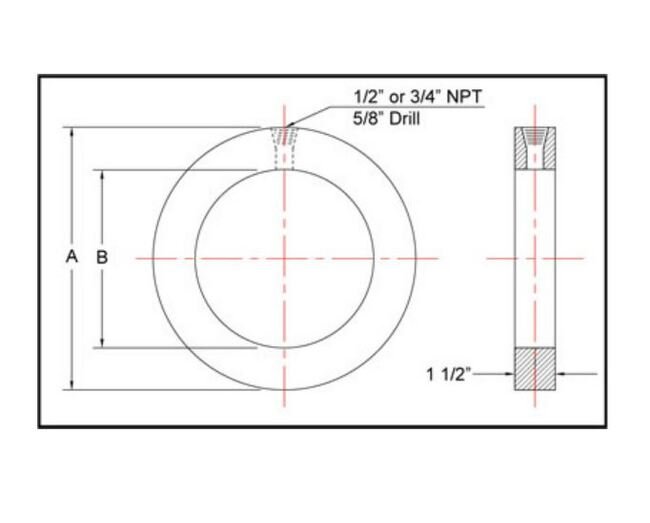

Dimensions Dimension A
17 3/4 in
Dimensions Dimension B
12 3/4 in
Dimensions Size
12 in
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 150 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Standard with 125-250 AARH Serrated FinishHigher ASME pressure ratings availableLarger sizes availableManufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
1480 psi
Operating Pressures And Temperatures Pressure At 489 Degree Fahr
600 psi
Specifications Material
Carbon Steel
Specifications Prefix Size
1200
Specifications Standard Material
SA516 Gr.70304 Stainless Steel316 Stainless Steel
Specifications Thread Size
1/2 in | 3/4 in
