Sure Flow 12 Inch Ductile Iron Swing Foot Valve

Sure Flow 12 Inch Ductile Iron Swing Foot Valve

DOU-2825f8

Sure Flow 12" Ductile Iron Swing Foot Valve - Ideal for municipal and industrial applications with uninterrupted flow and durable design.

$1,249.99
$1,249.99
Sale

Initiate Order

Sure Flow 12 Inch Ductile Iron Swing Foot Valve

Sure Flow 12 Inch Ductile Iron Swing Foot Valve

$1,249.99

Quantity: 1

Claim Your Seller Account

Sure Flow 12 Inch Ductile Iron Swing Foot Valve

Sure Flow 12 Inch Ductile Iron Swing Foot Valve

$1,249.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Sure Flow FVCEXF125 12 Inch Ductile Iron Elastic Swing Foot Valve with Flanged End Connections is a reliable choice for municipal and industrial applications. With ASME Class 125 flanges and epoxy-coated body, this valve ensures durability. The steel-reinforced insert in the one-piece molded disc guarantees 100% uninterrupted flow, making it suitable for continuous flow applications. Repairable without removal, this valve is versatile for horizontal or vertical pipelines.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Additional Information Additional Information
The one-piece disc hinge and flapper can be repaired without removal of the valve from the line. The Elastic Swing Foot Valve is designed for continuous flow applications and is not recommended for reciprocating pumps. The Elastic Swing Foot Valve can be installed in a vertical or horizontal pipeline.
Construction Construction

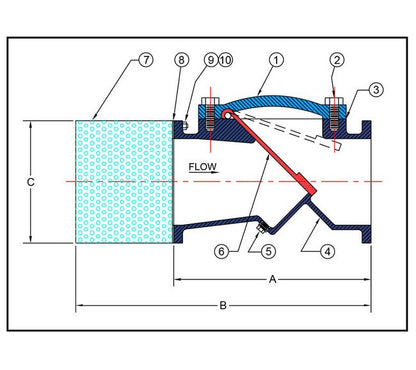

Item - 1Description - CoverItem - 2Description - Cover BoltsItem - 3Description - GasketItem - 4Description - Cast BodyItem - 5Description - DrainItem - 6Description - DiscItem - 7Description - Screen AssemblyItem - 8Description - Plate FlangeItem - 9Description - StudsItem - 10Description - Nuts
Dimensions Dimension A
27 1/2 in
Dimensions Dimension B
35 in
Dimensions Dimension C
19 1/4 in
Dimensions Drain Size
2 1/2 in
Dimensions Prefix Size
1200
Dimensions Shipping Weight
852 lb
Dimensions Size
12 in
Dimensions Valve Flow Coefficient Cv
3,680
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Valve comes standard with 1/8" pert. Stainless Steel Screen. Options are available.Horizontal Flow: Valve must be installed with cover on top to ensure proper operation.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
200 psi
Specifications Material
Ductile Iron
Specifications Orientation
Horizontal | Vertical
