Sure Flow 12 Inch Electric Actuator
Sure Flow 12 Inch Electric Actuator
SKU:KNI-fea9c1
Precise control with Sure Flow 12in Electric Actuator. ISO 9001:2008 certified for quality assurance.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Sure Flow 12 Inch Electric Actuator
$799.99
Quantity: 1
Claim Your Seller Account
Sure Flow 12 Inch Electric Actuator
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow 12 Inch Electric Actuator features a rising stem design for precise control. Equipped with a standard electric motor, it includes manual emergency operation, limit switches for open/closed positions, and torque switches. With dimensions meeting industry standards, this actuator ensures reliable performance in various applications. Certified to ISO 9001:2008 standards, it guarantees quality and compliance.

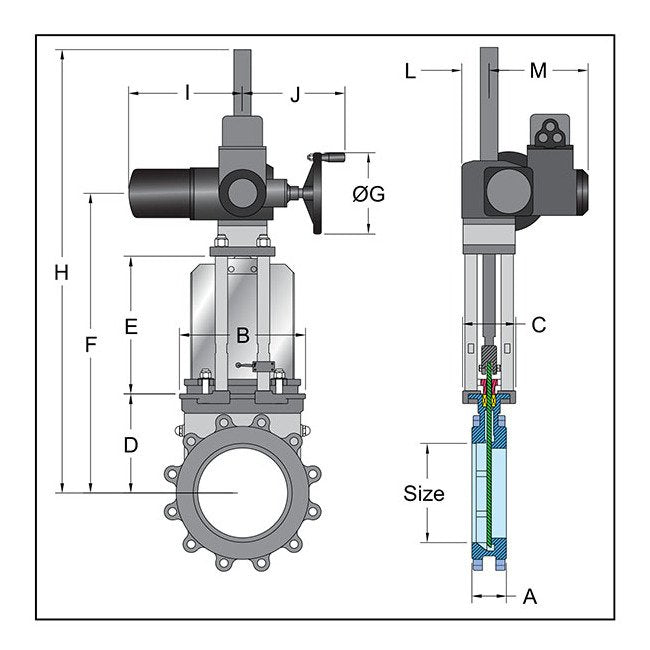

Product Specifications
Dimensions Diameter G
7 7/8 in
Dimensions Dimension A
2 3/4 in
Dimensions Dimension B
14 21/32 in
Dimensions Dimension C
4 13/16 in
Dimensions Dimension D
11 13/16 in
Dimensions Dimension E
16 5/16 in
Dimensions Dimension F
34 7/32 in
Dimensions Dimension H
57 1/4 in
Dimensions Dimension I
11 7/64 in
Dimensions Dimension J
10 5/64 in
Dimensions Dimension L
2 7/16 in
Dimensions Dimension M
9 23/32 in
Dimensions Size
12 in
Dimensions Torque
796 lbf/in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
