Sure Flow 12 Inch Pneumatic Actuator for Knife Gate Valves
Sure Flow 12 Inch Pneumatic Actuator for Knife Gate Valves
SKU:KNI-e2ad76
Reliable Sure Flow 12 Inch Pneumatic Actuator for industrial use with durable construction and versatile features.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Sure Flow 12 Inch Pneumatic Actuator for Knife Gate Valves
$499.99
Quantity: 1
Claim Your Seller Account
Sure Flow 12 Inch Pneumatic Actuator for Knife Gate Valves
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow 12 Inch Pneumatic Actuator is a reliable double-acting cylinder designed to meet the stringent requirements of industrial applications. Made with an aluminum jacket, stainless steel piston rod, and nitrile-coated steel piston, this actuator ensures durability and optimal performance. With industry certifications like ISO 9001:2008, it guarantees quality and compliance. Featuring options such as hard anodized covers, manual override, and fail-safe systems, this actuator offers versatility and safety. For seamless integration, optional instrumentation like positioners and solenoid valves are available upon request.
Product Specifications
Additional Information Additional Information
For valves installed in a horizontal position, we recommend U-type support plates and/or actuator support.

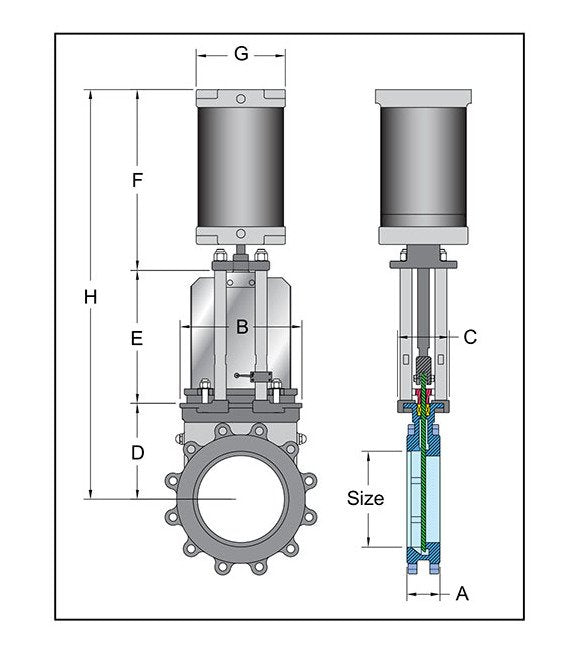

Dimensions Dimension A
2 3/4 in
Dimensions Dimension B
14 41/64 in
Dimensions Dimension C
413/16 in
Dimensions Dimension D
11 13/16 in
Dimensions Dimension E
16 19/64 in
Dimensions Dimension F
18 13/16 in
Dimensions Dimension G
8 21/32 in
Dimensions Dimension H
46 15/16 in
Dimensions Size
12 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Instrumentation On Request Instrumentation On Request
PositionersSolenoid valvesFlow regulatorsAir preparation units
Options Options
Hard anodized jacket and coversOver / Undersized cylinderStainless steel jacket and coversManual overrideFail safe systemTravel stops
Specifications Air Connection
3/8 in
Specifications Maximum Supply Pressure
142 psi
Specifications Minimum Supply Pressure
50 psi
Specifications Standard Cylinder
C200/320
Specifications Weight
180 lb
