The Sure Flow 14 Inch Electric Actuator is a reliable solution for precise valve control in industrial settings. This electric actuator features a rising stem design, equipped with a standard electric motor that includes manual emergency operation, limit switches for open and closed positions, and torque switches. With dimensions meeting industry standards, including a torque of 929 lbf/in, this actuator ensures efficient and accurate operation. Certified by the International Organization for Standardization (ISO) 9001:2008 (Intertek), it guarantees quality performance and compliance.

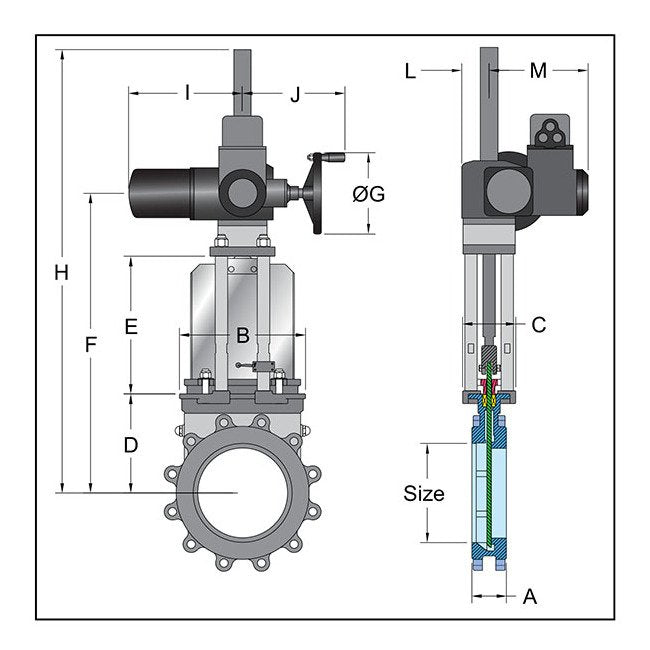

Product Specifications
Dimensions Diameter G
7 7/8 in
Dimensions Dimension A
3 25/32 in
Dimensions Dimension B
16 31/32 in
Dimensions Dimension C
7 3/4 in
Dimensions Dimension D
13 5/16 in
Dimensions Dimension E
19 11/16 in
Dimensions Dimension F
38 7/64 in
Dimensions Dimension H
61 9/64 in
Dimensions Dimension I
11 7/64 in
Dimensions Dimension J
10 5/64 in
Dimensions Dimension L
3 23/64 in
Dimensions Dimension M
9 23/32 in
Dimensions Size
14 in
Dimensions Torque
929 lbf/in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
