Sure Flow 16" Ductile Iron Foot Valve with Flanged Ends
Sure Flow 16" Ductile Iron Foot Valve with Flanged Ends
SKU:DOU-f61ce5
Durable 16" Ductile Iron Foot Valve with Flanged Ends for uninterrupted flow in municipal and industrial settings.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Sure Flow 16" Ductile Iron Foot Valve with Flanged Ends
$799.99
Quantity: 1
Claim Your Seller Account
Sure Flow 16" Ductile Iron Foot Valve with Flanged Ends
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow 16 Inch Ductile Iron Elastic Swing Foot Valve with Flanged End Connections is a robust solution for municipal and industrial applications. This valve features a durable ductile iron body with ASME Class 125 flanges and an epoxy-coated internal body, ensuring corrosion resistance and longevity. The one-piece molded disc with steel reinforcement allows for uninterrupted flow and secure closure. Designed for horizontal or vertical installation, this valve is ideal for continuous flow applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
The one-piece disc hinge and flapper can be repaired without removal of the valve from the line. The Elastic Swing Foot Valve is designed for continuous flow applications and is not recommended for reciprocating pumps. The Elastic Swing Foot Valve can be installed in a vertical or horizontal pipeline.
Construction Construction

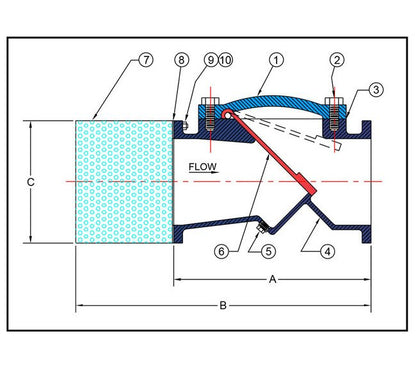

Item - 1Description - CoverItem - 2Description - Cover BoltsItem - 3Description - GasketItem - 4Description - Cast BodyItem - 5Description - DrainItem - 6Description - DiscItem - 7Description - Screen AssemblyItem - 8Description - Plate FlangeItem - 9Description - StudsItem - 10Description - Nuts
Dimensions Dimension A
31 15/16 in
Dimensions Dimension B
41 7/16 in
Dimensions Dimension C
23 3/4 in
Dimensions Drain Size
2 1/2 in
Dimensions Prefix Size
1600
Dimensions Shipping Weight
1,308 lb
Dimensions Size
16 in
Dimensions Valve Flow Coefficient Cv
6,960
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Valve comes standard with 1/8" pert. Stainless Steel Screen. Options are available.Horizontal Flow: Valve must be installed with cover on top to ensure proper operation.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
150 psi
Specifications Material
Ductile Iron
Specifications Orientation
Horizontal | Vertical
