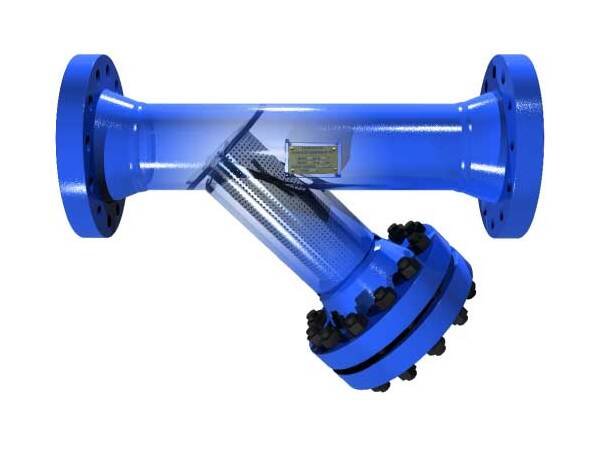

Sure Flow 16 Inch Carbon Steel Fabricated Y Strainer
Sure Flow 16 Inch Carbon Steel Fabricated Y Strainer
SKU:FAB-50cbf6
Durable Sure Flow 16 Inch Carbon Steel Y Strainer with ASME Certification - Ideal for High-Pressure Applications
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Sure Flow 16 Inch Carbon Steel Fabricated Y Strainer
$499.99
Quantity: 1
Claim Your Seller Account
Sure Flow 16 Inch Carbon Steel Fabricated Y Strainer
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow FW300 16 Inch Carbon Steel Fabricated Y Strainer is expertly designed for demanding applications, offering exceptional durability and reliability. This Y strainer can be customized to meet specific requirements, with options for various materials and screen sizes. It is equipped to handle pressures of up to 300 psi at 422°F steam temperature and 740 psi at 100°F water, oil, gas temperature. With ASME Section VIII certification and meticulous construction, this strainer ensures optimal performance and longevity.
Product Specifications
Construction Construction

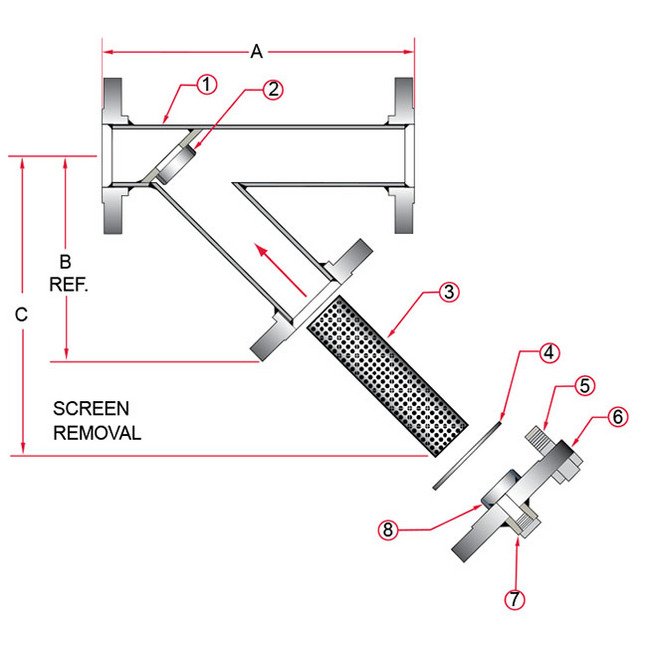

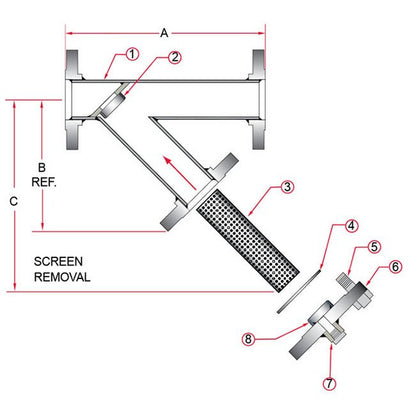

Item - 1Description - Body AssemblyItem - 2Description - Screen GuideItem - 3Description - ScreenItem - 4Description - GasketItem - 5Description - BoltingItem - 6Description - Blind FlangeItem - 7Description - Drain AssemblyItem - 8Description - Screen Guide
Dimensions Dimension A
41 9/16 in
Dimensions Dimension B
32 in
Dimensions Dimension C
51 in
Dimensions Prefix Size
1600
Dimensions Size
16 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Higher ASME pressure ratings availableLarger sizes availableManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
740 psi
Operating Pressures And Temperatures Pressure At 422 Degree Fahr
300 psi
Specifications Connection Type
Fabricated
Specifications Material
Carbon Steel
Standard Screens Screen Opening
0.125 in
