Sure Flow 16 Inch Ductile Iron Swing Check Valve
Sure Flow 16 Inch Ductile Iron Swing Check Valve
SKU:DOU-44d971
Durable 16in Ductile Iron Swing Check Valve for municipal & industrial use. ASME Class 125 flanged, epoxy-coated body for smooth flow control.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Sure Flow 16 Inch Ductile Iron Swing Check Valve
$799.99
Quantity: 1
Claim Your Seller Account
Sure Flow 16 Inch Ductile Iron Swing Check Valve
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

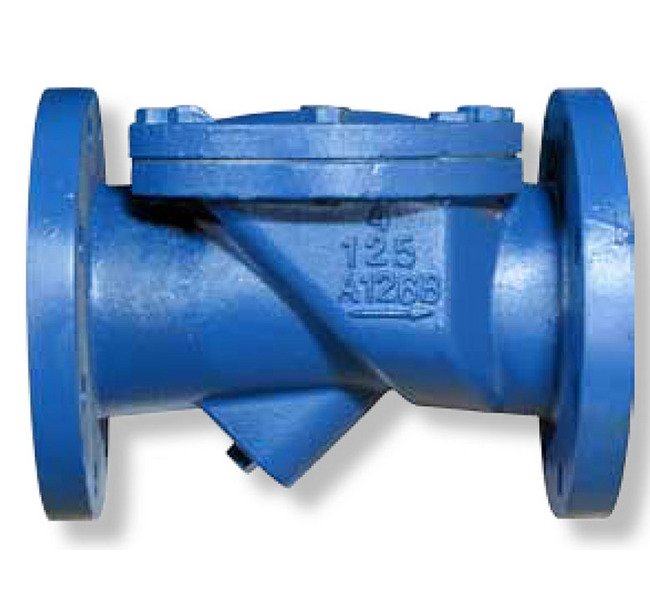

The Sure Flow CXF125IV 16 Inch Ductile Iron Elastic Swing Check Valve with Flanged End Connections is designed for municipal and industrial applications. ASME Class 125 flanges ensure a sturdy connection, while the internal epoxy coating enhances durability. The one-piece molded disc, reinforced with steel, guarantees reliable closure, allowing 100% uninterrupted flow when open. With repairable hinge and disc features, maintenance is convenient without removing the valve from the line.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
Optional: A Backflow Rod can be installed and used for draining or pump priming. This option is a safe and effective way to manually activate the valve.
Construction Construction

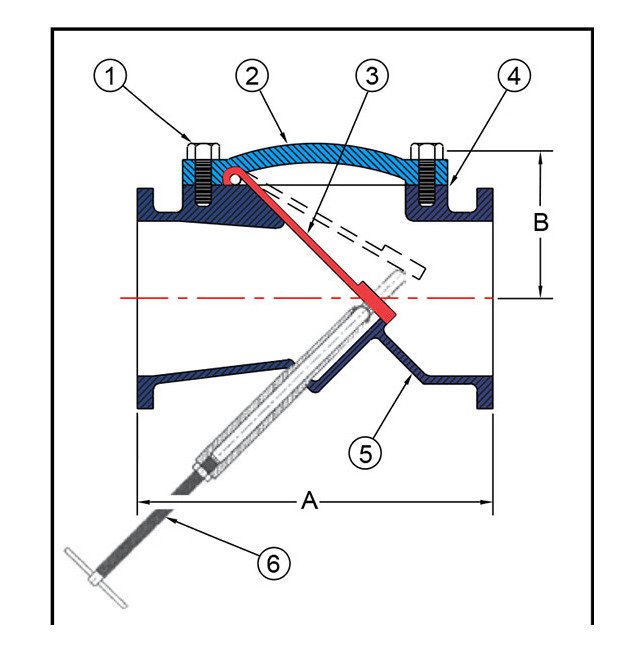

Item - 1Description - Cover BoltsMaterial - Alloy Steel SAE Grade 5Item - 2Description - CoverMaterial - A536 60-45-12 Ductile IronItem - 3Description - DiscMaterial - Buna-N with Steel & Fabric ReinforcementItem - 4Description - GasketMaterial - Lexide NK-511 (non-asbestos)Item - 5Description - Cast BodyMaterial - A536 60-45-12 Ductile IronItem - 6Description - Backflow Rod (Optional)Material - A582, B505 Brass
Dimensions Dimension A
31 15/16 in
Dimensions Dimension B
15 1/4 in
Dimensions Drain Size
2 1/2 in
Dimensions Prefix Size
1600
Dimensions Shipping Weight
1,090 lb
Dimensions Size
16 in
Dimensions Valve Flow Coefficient Cv
8,700
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
150 psi
Specifications Material
Ductile Iron
