Sure Flow 18" Ductile Iron Swing Foot Valve with Flanged End

Sure Flow 18" Ductile Iron Swing Foot Valve with Flanged End

DOU-bad272

Robust Sure Flow Elastic Swing Foot Valve for municipal and industrial use, featuring ductile iron construction, ASME Class 125 flanges, and epoxy-coated internal body.

$1,499.99
$1,499.99
Sale

Initiate Order

Sure Flow 18" Ductile Iron Swing Foot Valve with Flanged End

Sure Flow 18" Ductile Iron Swing Foot Valve with Flanged End

$1,499.99

Quantity: 1

Claim Your Seller Account

Sure Flow 18" Ductile Iron Swing Foot Valve with Flanged End

Sure Flow 18" Ductile Iron Swing Foot Valve with Flanged End

$1,499.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Sure Flow FVCEXF125 Elastic Swing Foot Valve is a robust solution suitable for municipal and industrial applications. Constructed with ductile iron and ASME Class 125 flanges, this valve features an epoxy-coated internal body for durability. The one-piece molded disc with a steel reinforced insert ensures reliable closure while allowing 100% uninterrupted flow. Designed for horizontal or vertical installation, this valve is ideal for continuous flow applications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Additional Information Additional Information
The one-piece disc hinge and flapper can be repaired without removal of the valve from the line. The Elastic Swing Foot Valve is designed for continuous flow applications and is not recommended for reciprocating pumps. The Elastic Swing Foot Valve can be installed in a vertical or horizontal pipeline.
Construction Construction

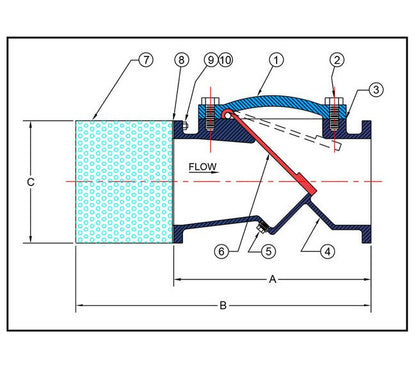

Item - 1Description - CoverItem - 2Description - Cover BoltsItem - 3Description - GasketItem - 4Description - Cast BodyItem - 5Description - DrainItem - 6Description - DiscItem - 7Description - Screen AssemblyItem - 8Description - Plate FlangeItem - 9Description - StudsItem - 10Description - Nuts
Dimensions Dimension A
35 15/16 in
Dimensions Dimension B
47 7/16 in
Dimensions Dimension C
25 1/4 in
Dimensions Drain Size
3 in
Dimensions Prefix Size
1800
Dimensions Shipping Weight
1,740 lb
Dimensions Size
18 in
Dimensions Valve Flow Coefficient Cv
8,960
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Valve comes standard with 1/8" pert. Stainless Steel Screen. Options are available.Horizontal Flow: Valve must be installed with cover on top to ensure proper operation.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
150 psi
Specifications Material
Ductile Iron
Specifications Orientation
Horizontal | Vertical
