Sure Flow 18 Inch Electric Actuator for Knife Gate Valves
Sure Flow 18 Inch Electric Actuator for Knife Gate Valves
SKU:KNI-db116b
Sure Flow 18 in Electric Actuator: Rising stem, manual emergency operation, limit switches, torque switches, ISO 9001:2008 certified.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Sure Flow 18 Inch Electric Actuator for Knife Gate Valves
$499.99
Quantity: 1
Claim Your Seller Account
Sure Flow 18 Inch Electric Actuator for Knife Gate Valves
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience precision control with the Sure Flow 18 Inch Electric Actuator designed for Knife Gate Valves. This actuator features a rising stem, manual emergency operation, limit switches for open/closed positions, and torque switches. With dimensions meeting industry standards, including ISO 9001:2008 certification, this actuator delivers reliable performance and durability suitable for a variety of applications.

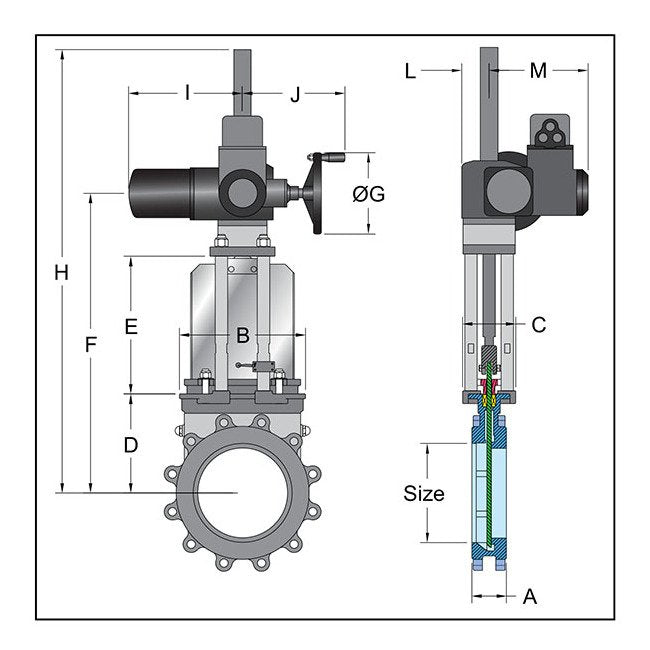

Product Specifications
Dimensions Diameter G
12 13/32 in
Dimensions Dimension A
4 11/64 in
Dimensions Dimension B
21 1/4 in
Dimensions Dimension C
10 5/8 in
Dimensions Dimension D
17 1/64 in
Dimensions Dimension E
23 35/64 in
Dimensions Dimension F
47 7/16 in
Dimensions Dimension H
71 1/16 in
Dimensions Dimension I
15 5/32 in
Dimensions Dimension J
12 25/32 in
Dimensions Dimension L
3 35/64 in
Dimensions Dimension M
11 7/32 in
Dimensions Size
18 in
Dimensions Torque
1416 lbf/in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
