Sure Flow 18" Stainless Steel Fabricated Basket Strainer
Sure Flow 18" Stainless Steel Fabricated Basket Strainer
SKU:BAS-ccb1d8
Sure Flow 18" Stainless Steel Basket Strainer - High-Pressure Filtration, Customizable Options, ISO 9001:2008 Compliant
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Sure Flow 18" Stainless Steel Fabricated Basket Strainer
$799.99
Quantity: 1
Claim Your Seller Account
Sure Flow 18" Stainless Steel Fabricated Basket Strainer
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

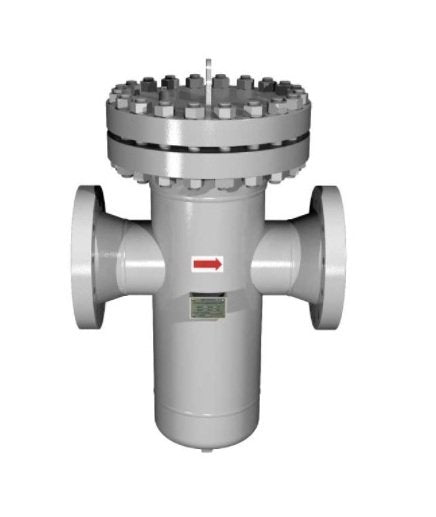

The Sure Flow BW600SS 18-inch Stainless Steel Fabricated Basket Strainer is a superior solution for industrial filtration needs. Constructed with high-grade stainless steel, this basket strainer can withstand operating pressures up to 600 psi at 489°F steam temperature and 1440 psi at 100°F water, oil, or gas temperature. It offers custom options like quick opening covers, various body materials, and different basket materials for specific applications. This strainer meets ISO 9001:2008 standards and offers optional construction features like backwash connections, high-pressure ratings, and special mesh options down to 5 microns. Ensure reliable filtration and compliance with Sure Flow.
Product Specifications
Construction Body Material
Stainless Steel
Construction Construction

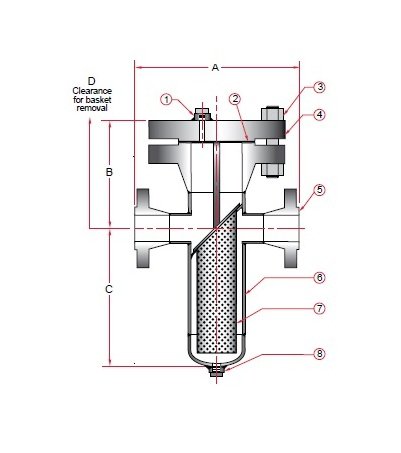

Item - 1Description - Vent AssemblyItem - 2Description - GasketItem - 3Description - BoltingItem - 4Description - CoverItem - 5Description - Inlet/Outlet FlangeItem - 6Description - Body Assembly
Custom Strainer Options Optional Features
Quick opening coversBody materials of Stainless Steel or special alloysCustom Baskets of 316SS, Monel, and special alloysDavit AssemblyVarious end connections available including Weld Neck Flanges, Socket Weld and Ring Type Joint connectionsLarger sizes availableSingle or multiple basketsOversized body design to reduce pressure dropAutomatic air ventPressure gauges or differential pressure switchesSpecial internal and external coatingsMany codes and designs are available
Custom Strainer Options Special Construction
Backwash connectionsHigh pressure Class 600, Class 900, Class 1500 and Class 2500Special perforated or mesh as low as 5 microns
Dimensions Body Size
24 in
Dimensions Dimension A
57 in
Dimensions Dimension B
30 in
Dimensions Dimension C
47 in
Dimensions Dimension D
90 1/2 in
Dimensions Prefix Size
1800
Dimensions Size
18 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Higher ASME pressure ratings availableLarger sizes availableASME Section VIII, DIV 1, Current Edition: U and UM Code Stamp AvailableManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
1440 psi
Operating Pressures And Temperatures Pressure At 489 Degree Fahr
600 psi
Specifications Strainer Type
Basket
