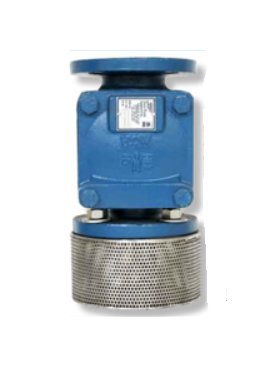

Sure Flow 2 1/2" Ductile Iron Swing Foot Valve with ASME Class 125 Flanges
Sure Flow 2 1/2" Ductile Iron Swing Foot Valve with ASME Class 125 Flanges
SKU:DOU-170d48
Sure Flow 2 1/2" Ductile Iron Swing Foot Valve for municipal and industrial use, ASME Class 125.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Sure Flow 2 1/2" Ductile Iron Swing Foot Valve with ASME Class 125 Flanges
$289.99
Quantity: 1
Claim Your Seller Account
Sure Flow 2 1/2" Ductile Iron Swing Foot Valve with ASME Class 125 Flanges
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow FVCEXF125 Ductile Iron Elastic Swing Foot Valve is a reliable choice for municipal and industrial applications. With ASME Class 125 flanges and an epoxy-coated body, this valve ensures durability and performance. The one-piece molded disc, reinforced with steel, guarantees secure closure and uninterrupted flow when open. Suitable for horizontal or vertical installation, this valve is designed for continuous flow applications. Repairable without removal, it comes standard with a stainless steel screen and is ideal for applications requiring a 2 1/2" valve size.
Product Specifications
Additional Information Additional Information
The one-piece disc hinge and flapper can be repaired without removal of the valve from the line. The Elastic Swing Foot Valve is designed for continuous flow applications and is not recommended for reciprocating pumps. The Elastic Swing Foot Valve can be installed in a vertical or horizontal pipeline.
Construction Construction
Item - 1Description - CoverItem - 2Description - Cover BoltsItem - 3Description - GasketItem - 4Description - Cast BodyItem - 5Description - DrainItem - 6Description - DiscItem - 7Description - Screen AssemblyItem - 8Description - Plate FlangeItem - 9Description - StudsItem - 10Description - Nuts
Dimensions Dimension A
8 1/2 in
Dimensions Dimension B
11 in
Dimensions Dimension C
7 1/4 in
Dimensions Drain Size
3/4 in
Dimensions Prefix Size
0250
Dimensions Shipping Weight
46 lb
Dimensions Size
2 1/2 in
Dimensions Valve Flow Coefficient Cv
124
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Valve comes standard with 1/8" pert. Stainless Steel Screen. Options are available.Horizontal Flow: Valve must be installed with cover on top to ensure proper operation.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
200 psi
Specifications Material
Ductile Iron
Specifications Orientation
Horizontal | Vertical
