Sure Flow 2 1/2 Inch Electric Actuator for Knife Gate Valves
Sure Flow 2 1/2 Inch Electric Actuator for Knife Gate Valves
SKU:KNI-1145a3
Enhance valve control with Sure Flow 2 1/2 Inch Electric Actuator - reliable, precise, and ISO 9001:2008 compliant.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Sure Flow 2 1/2 Inch Electric Actuator for Knife Gate Valves
$289.99
Quantity: 1
Claim Your Seller Account
Sure Flow 2 1/2 Inch Electric Actuator for Knife Gate Valves
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow 2 1/2 Inch Electric Actuator is a top-of-the-line solution for your knife gate valve automation needs. This actuator features a rising stem design for efficient operation along with manual emergency operation capabilities for added control. Equipped with limit switches for precise open/close settings and torque switches for optimal performance. With dimensions meeting industry standards and certifications such as ISO 9001:2008 (Intertek), this electric actuator offers a torque of 221 lbf/in, ensuring reliability and durability in demanding industrial environments.

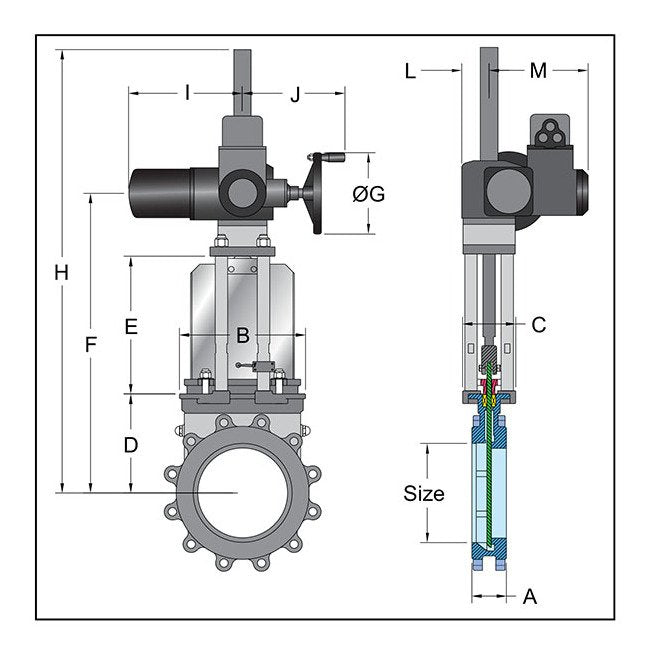

Product Specifications
Dimensions Diameter G
6 5/16 in
Dimensions Dimension A
1 37/64 in
Dimensions Dimension B
5 9/32 in
Dimensions Dimension C
3 15/16 in
Dimensions Dimension D
41 7/32 in
Dimensions Dimension E
5 3/4 in
Dimensions Dimension F
15 29/32 in
Dimensions Dimension H
21 17/32 in
Dimensions Dimension I
10 7/16 in
Dimensions Dimension J
9 13/16 in
Dimensions Dimension L
2 7/16 in
Dimensions Dimension M
9 11/32 in
Dimensions Size
2 1/2 in
Dimensions Torque
221 lbf/in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
