Sure Flow 2.5" Cast 316 Stainless Steel Swivel Clamp Simplex Basket Strainer
Sure Flow 2.5" Cast 316 Stainless Steel Swivel Clamp Simplex Basket Strainer
SKU:BAS-c27a2b
Durable Sure Flow 2.5" Stainless Steel Basket Strainer with Quick-Open Swivel Clamp Cover. Meets ISO 9001:2008 standards.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Sure Flow 2.5" Cast 316 Stainless Steel Swivel Clamp Simplex Basket Strainer
$289.99
Quantity: 1
Claim Your Seller Account
Sure Flow 2.5" Cast 316 Stainless Steel Swivel Clamp Simplex Basket Strainer
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow 2 1/2" Cast 316 Stainless Steel Basket Strainer is designed for applications with high solid particulate levels. Featuring a quick-open swivel clamp cover for tool-free screen removal, it ensures easy maintenance. Constructed with ASTM A351 Grade CF8M materials, it offers durability and resistance. With an operating pressure of 275 psi, perforated standard screen, and ISO 9001:2008 certification, this basket strainer meets stringent industry standards.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Cast 316 Stainless Steel
Construction Cover Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M O-Ring Fluorocarbon (FKM)
Construction Screen Material
Stainless Steel

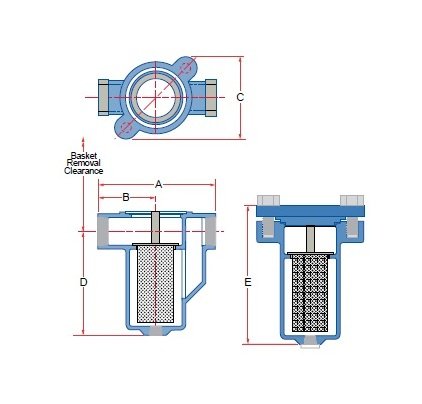

Dimensions Basket Removal Clearance
11 3/8 in
Dimensions Dimension A
12 3/4 in
Dimensions Dimension B
5 3/8 in
Dimensions Dimension C
8 3/16 in
Dimensions Dimension D
8 5/8 in
Dimensions Dimension E
12 in
Dimensions Drain Size
1 1/2 in
Dimensions Prefix Size
0250
Dimensions Shipping Weight
65 lb
Dimensions Size
2 1/2 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
275 psi
Standard Screens Perforated Standard Screen
1/32 in
Standard Screens Screen Opening
0.032 in
