Sure Flow 2.5" Fabricated Tee Strainer

Name: Sure Flow 2.5" Fabricated Tee Strainer
Brand: Sure Flow Equipment, Inc.
SKU: TEM-c8cd63
Price: 349.99 USD
Availability: OutOfStock

SKU:TEM-c8cd63

Ensure pipeline purity with the Sure Flow 2.5" Fabricated Tee Strainer. Customizable, durable, and ISO 9001:2008 compliant for optimal performance.

$349.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

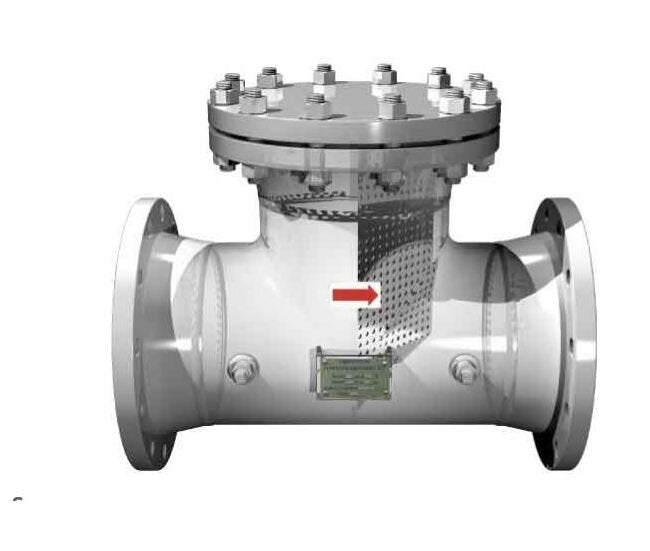

The Sure Flow Fabricated Tee Strainer is expertly crafted to efficiently remove foreign particles from pipelines, safeguarding pumps and valves. Constructed of carbon or stainless steel, it can be customized to meet specific requirements. Compliant with ISO 9001:2008 standards, ensuring quality and reliability. Available in various sizes and configurations to suit different applications.

Product Specifications

Additional Information Additional Information

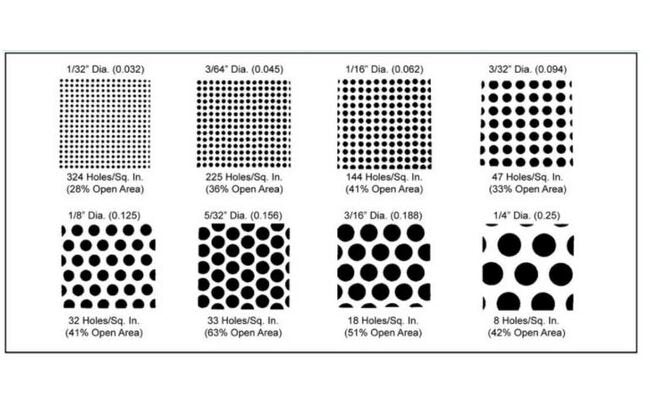

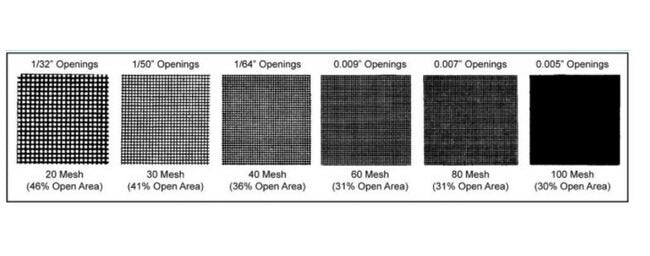

When ordering specify:Type - Straight Flow, Angled Flow, Angled ModifiedNominal Pipe SizeFlange Rating and FacingPressure Rating and FacingCorrosion Conditions, if any (type of materialPerforation (particle retention)

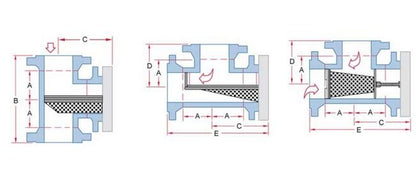

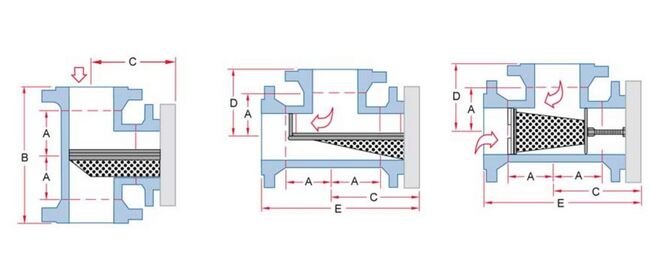

Dimensions Dimension A

3 in

Dimensions Dimension B For American Society Of Mechanical Engine

14 3/4 in

Dimensions Dimension C For American Society Of Mechanical Engine

9 3/8 in

Dimensions Dimension D For American Society Of Mechanical Engine

7 3/8 in

Dimensions Dimension E For American Society Of Mechanical Engine

16 3/4 in

Dimensions Pipe Size

2 1/2 in

Industry Standardscertifications Industry Standardscertification

International Organization for Standardization (ISO) 9001:2008 (Intertek)

Note Note

Flanges and bodies are designed to meet Section 1 of American Standard Code for Pressure Piping, ASA B31.1.Manufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.

Sure Flow 2.5" Fabricated Tee Strainer
