Sure Flow 2.5in Cast Iron NPT Swivel Clamp Simplex Basket Strainer
Sure Flow 2.5in Cast Iron NPT Swivel Clamp Simplex Basket Strainer
SKU:BAS-0c6382
Efficiently separate solid particulates with the Sure Flow 2.5in Cast Iron NPT Swivel Clamp Basket Strainer.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Sure Flow 2.5in Cast Iron NPT Swivel Clamp Simplex Basket Strainer
$289.99
Quantity: 1
Claim Your Seller Account
Sure Flow 2.5in Cast Iron NPT Swivel Clamp Simplex Basket Strainer
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow BTC125 2 1/2 Inch Cast Iron NPT Simplex Basket Strainer is designed for applications with high solid particulate content. Featuring a top removal basket screen and a Swivel Clamp Cover, cleaning and maintenance are fast and tool-free. Constructed with ASTM A126 Class B materials and a stainless steel screen, it offers durability and efficient particle capture. Operating at 200 psi, this strainer meets ISO 9001:2008 standards and ensures reliable performance in demanding environments.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Cover Material
American Society for Testing and Materials (ASTM) A126 Class B Buna-N O-Ring
Construction Screen Material
Stainless Steel

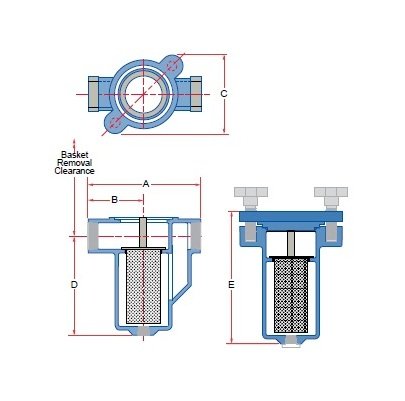

Dimensions Basket Removal Clearance
11 3/8 in
Dimensions Dimension A
12 3/4 in
Dimensions Dimension B
5 3/8 in
Dimensions Dimension C
8 3/16 in
Dimensions Dimension D
8 5/8 in
Dimensions Dimension E
12 in
Dimensions Drain Size
1 1/2 in
Dimensions Prefix Size
0250
Dimensions Shipping Weight
65 lb
Dimensions Size
2 1/2 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
200 psi
Standard Screens Perforated Standard Screen
1/32 in
Standard Screens Screen Opening
0.032 in
