Sure Flow 2" Barred Tee with Buttweld End Connections
Sure Flow 2" Barred Tee with Buttweld End Connections
SKU:BAR-f553d1
Reliable Sure Flow 2" Barred Tee for high-pressure pipelines, ASME compliant
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Sure Flow 2" Barred Tee with Buttweld End Connections
$349.99
Quantity: 1
Claim Your Seller Account
Sure Flow 2" Barred Tee with Buttweld End Connections
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow 2-inch Barred Tee is engineered to meet the demanding specifications of ASME Class 150 to 2500+. Constructed with precision in Alloy, Carbon Steel, or Stainless Steel, this tee ensures robust performance under high-pressure environments. With operating pressures of 740 psi at 100°F, it guarantees secure passage for pigs in pipeline systems. Compliant with ASME and ISO 9001:2008 standards, the Tee features custom-fitted bar sections and options for Flanged Connections, making it versatile for various applications.
Product Specifications
Additional Information Additional Information

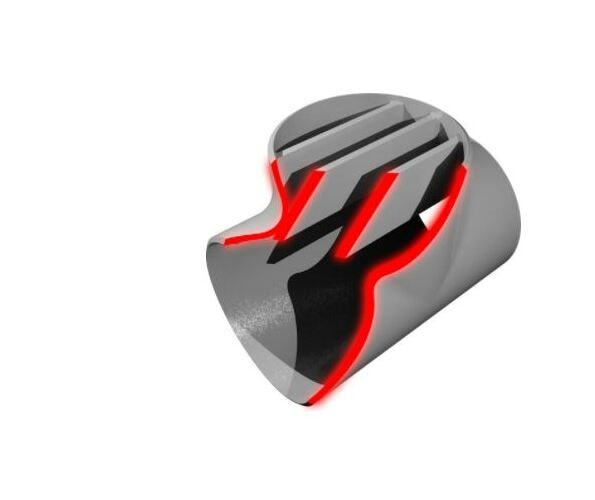

Custom fitted bar sections are welded to the branch of the buttweld Tee. The bars are added to ensure the Pig passes by the branch opening. Bar spacing is designed to prevent damage to the functional elements of the Pig.Buttweld End Connections are standard. Optional Flanged Connections in raised face or RTJ, as well as extended pup-pieces, are available. Barred Tees are used in a pipeline Launcher/Receiver system and at any branch in the pipeline to ensure safe passage of the Pig.

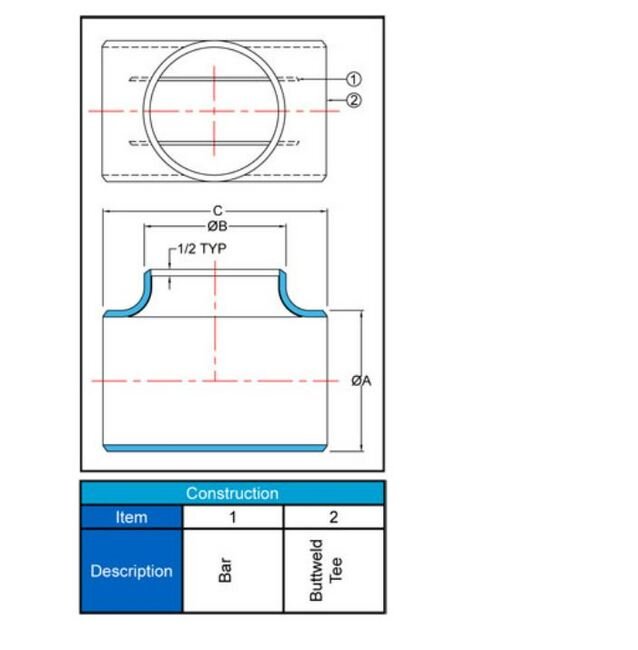

Construction Construction
Item - 1Description - BarItem - 2Description - Buttweld Tee
Dimensions Dimension C
5 in
Dimensions Size
2 in
Dimensions Thickness At 2 Inch In Branch Size And 2 Bar
1/4 in
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 150 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Higher ASME pressure ratings available Larger sizes availableManufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
740 psi
Operating Pressures And Temperatures Pressure At 366 Degree Fahr
150 psi
Specifications Material
Alloy | Carbon Steel | Stainless Steel
Specifications Prefix Size
0200
