Sure-Flow 2" Barred Tee with Buttweld End Connections
Sure-Flow 2" Barred Tee with Buttweld End Connections
SKU:BAR-6ff641
Sure-Flow 2" Barred Tee - ASME Class 150 to 2500 standard with Buttweld End Connections, ensuring safe Pig passage in pipeline systems.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Sure-Flow 2" Barred Tee with Buttweld End Connections
$129.99
Quantity: 1
Claim Your Seller Account
Sure-Flow 2" Barred Tee with Buttweld End Connections
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure-Flow 2" Barred Tee with Buttweld End Connections is expertly crafted to meet ASME Class 150 to 2500 standards in Alloy, Carbon Steel, or Stainless Steel. Operating at 1440 psi and 100°F for Water, Oil, Gas (WOG) applications, this Tee ensures safe Pig passage with custom-fitted bar sections, while offering optional Flanged Connections. Designed for pipeline Launchers/Receivers, this Tee guarantees both performance and durability.
Product Specifications
Additional Information Additional Information

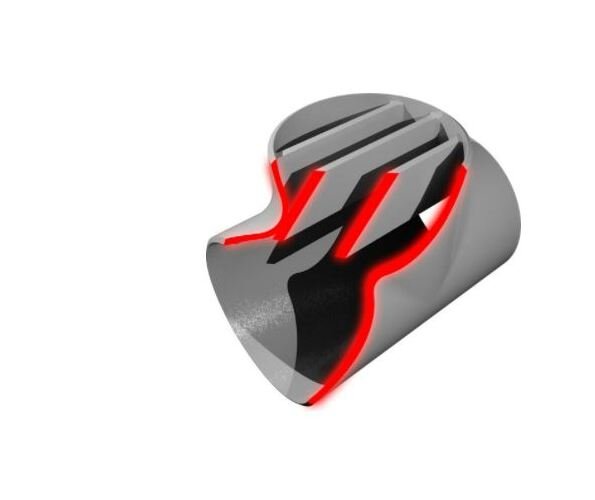

Custom fitted bar sections are welded to the branch of the buttweld Tee. The bars are added to ensure the Pig passes by the branch opening. Bar spacing is designed to prevent damage to the functional elements of the Pig.Buttweld End Connections are standard. Optional Flanged Connections in raised face or RTJ, as well as extended pup-pieces, are available. Barred Tees are used in a pipeline Launcher/Receiver system and at any branch in the pipeline to ensure safe passage of the Pig.

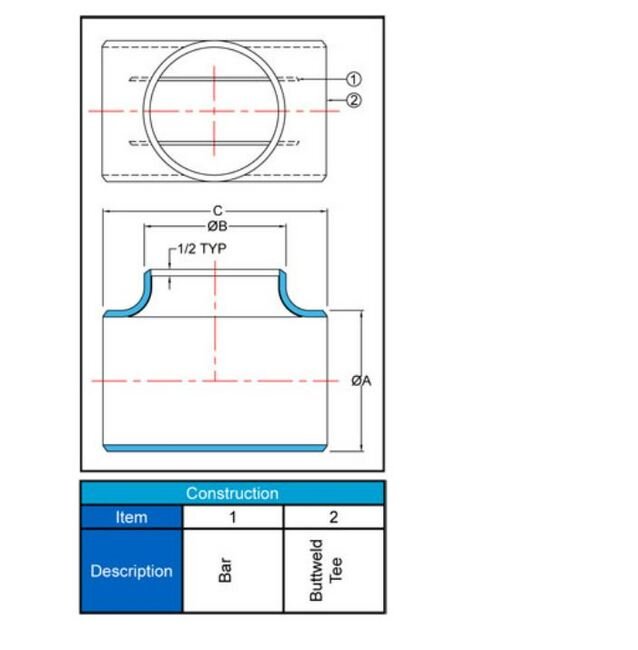

Construction Construction
Item - 1Description - BarItem - 2Description - Buttweld Tee
Dimensions Dimension C
5 in
Dimensions Size
2 in
Dimensions Thickness At 2 Inch In Branch Size And 2 Bar
1/4 in
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 150 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Higher ASME pressure ratings available Larger sizes availableManufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
1440 psi
Operating Pressures And Temperatures Pressure At 489 Degree Fahr
600 psi
Specifications Material
Alloy | Carbon Steel | Stainless Steel
Specifications Prefix Size
0200
