Sure Flow 2" Bleed and Flushing Ring

Sure Flow 2" Bleed and Flushing Ring

LIN-dbfe98

Ensure seamless operations with the Sure Flow 2" Bleed and Flushing Ring, meeting ASME Class 150 & ISO 9001:2008 standards. Ideal for high-pressure applications.

$349.99
$349.99
Sale

Initiate Order

Sure Flow 2" Bleed and Flushing Ring

Sure Flow 2" Bleed and Flushing Ring

$349.99

Quantity: 1

Claim Your Seller Account

Sure Flow 2" Bleed and Flushing Ring

Sure Flow 2" Bleed and Flushing Ring

$349.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Sure Flow 2" Bleed and Flushing Ring is a durable solution designed to handle high-pressure and temperature environments, meeting ASME Class 150 and ISO 9001:2008 standards. Constructed from high-grade SA516 Gr.70 and 304/316 Stainless Steel, this ring ensures reliable performance for water, oil, and gas applications. With multiple tap options and strict adherence to ASME codes, it offers versatility and compliance for institutional procurement needs. Ensure seamless operations with Sure Flow Equipment.

Product Specifications

Additional Information Additional Information
Sure Flow Equipment Bleed Rings and Flushing Rings are produced in strict accordance with the following codes of practice:ASME B16.5ASME B16.20ASME B16.47 (For larger diameter flanges)

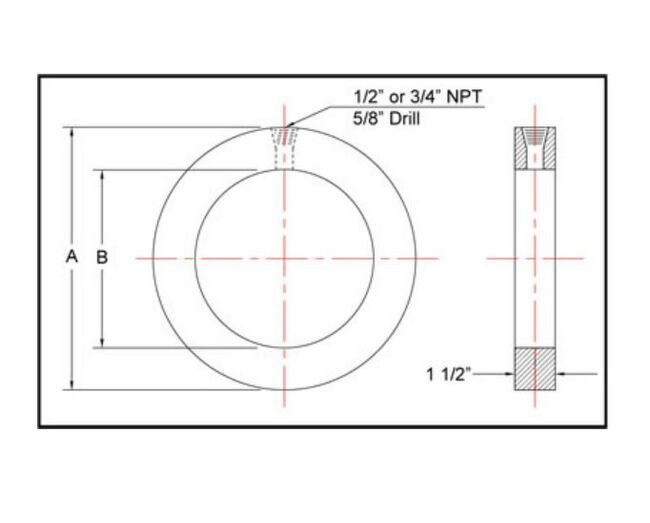

Dimensions Dimension A
4 in
Dimensions Dimension B
2 3/8 in
Dimensions Size
2 in
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 150 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Standard with 125-250 AARH Serrated FinishHigher ASME pressure ratings availableLarger sizes availableManufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
275 psi
Operating Pressures And Temperatures Pressure At 366 Degree Fahr
150 psi
Specifications Material
Stainless Steel
Specifications Prefix Size
0200
Specifications Standard Material
SA516 Gr.70304 Stainless Steel316 Stainless Steel
Specifications Thread Size
1/2 in | 3/4 in
