Sure Flow 2" Cast 316 Stainless Steel NPT Y Strainer

Name: Sure Flow 2" Cast 316 Stainless Steel NPT Y Strainer
Brand: Sure Flow Equipment, Inc.
SKU: YST-fee8e1
Price: 299.99 USD
Availability: OutOfStock

SKU:YST-fee8e1

High-pressure 2" Cast 316 Stainless Steel NPT Y Strainer for water, oil, or gas applications with ASTM standards compliance.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

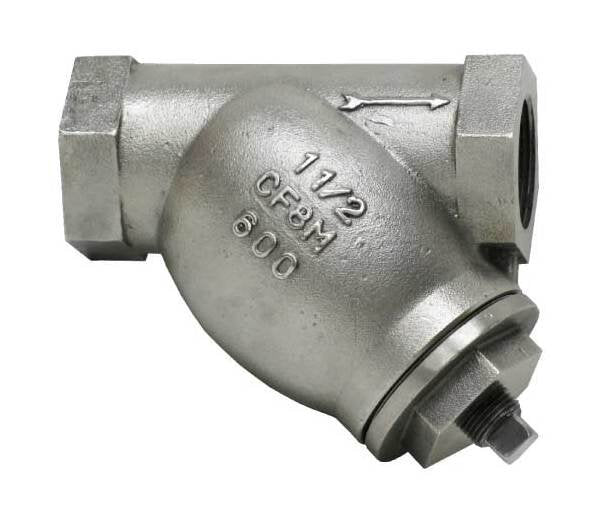

The Sure Flow YT6SS 2 Inch Cast 316 Stainless Steel NPT Y Strainer is a high-pressure, durable solution for water, oil, or gas applications. With a robust design rated up to 1440 psi, it features a machined tapered seat for a secure fit, stainless steel screen, and blow-off capability. Compliant with ASTM A351 Grade CF8M standards, this Y strainer ensures reliable filtration and longevity in demanding environments. Specify for steam service and enhance system efficiency with easy maintenance.

Product Specifications

Construction Body Material

American Society for Testing and Materials (ASTM) A351 Grade CF8M Cast Stainless Steel

Construction Cover Material

American Society for Testing and Materials (ASTM) A351 Grade CF8M Cast Stainless Steel

Construction Plug Material

American Society for Testing and Materials (ASTM) A351 Grade CF8M Cast Stainless Steel

Construction Screen Material

Stainless Steel

Dimensions Blow Off National Pipe Thread Npt Size

3/4 in

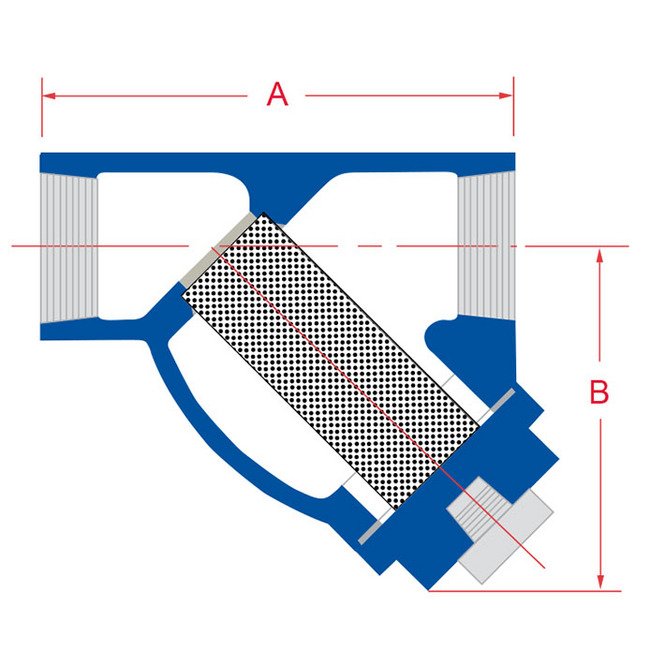

Dimensions Dimension A

7 5/8 in

Dimensions Dimension B

6 in

Dimensions Prefix Size

0200

Dimensions Shipping Weight

18 lb

Dimensions Size

2 in

Industry Standardscertifications Industry Standardscertification

International Organization for Standardization (ISO) 9001:2008 (Intertek)

Note Note

Must specify if for steam serviceFor Socket Weld add suffix "SW" to model numberManufacturer reserves the right to modify dimensions, materials, or design.

Operating Pressures And Temperatures Pressure At 100 Degree Fahr

1440 psi

Operating Pressures And Temperatures Pressure At 486 Degree Fahr

600 psi

Specifications Connection Type

Threaded

Specifications Orientation

Horizontal | Vertical

Standard Screens Perforated Standard Screen

1/32 in

Standard Screens Screen Opening

0.032 in

Sure Flow 2" Cast 316 Stainless Steel NPT Y Strainer
