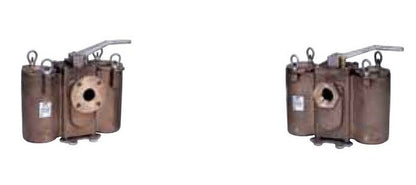

Sure Flow 2 Inch Cast Iron Duplex Strainer with Threaded Connection
Sure Flow 2 Inch Cast Iron Duplex Strainer with Threaded Connection
SKU:DUP-8ea6b8
Efficiently remove debris with the Sure Flow 2 Inch Cast Iron Duplex Strainer, designed for easy maintenance and optimal performance.
Regular price
$179.99
Regular price
Sale price
$179.99
Unit price
per
Initiate Order
Sure Flow 2 Inch Cast Iron Duplex Strainer with Threaded Connection
$179.99
Quantity: 1
Claim Your Seller Account
Sure Flow 2 Inch Cast Iron Duplex Strainer with Threaded Connection
$179.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow 2 Inch Cast Iron Duplex Strainer with Threaded Connection is a robust solution for removing dirt and debris from pipelines. Its innovative design allows for effortless strainer basket servicing, preventing overflow and leakage. With a focus on durability and efficiency, this duplex strainer features a unique flow diverter valve cartridge design, making maintenance hassle-free. Compliant with ASME CL.125 at 150°F, ISO 9001:2008, and other industry standards, this duplex strainer ensures reliable performance in institutional and government settings.
Product Specifications
Additional Information Additional Information

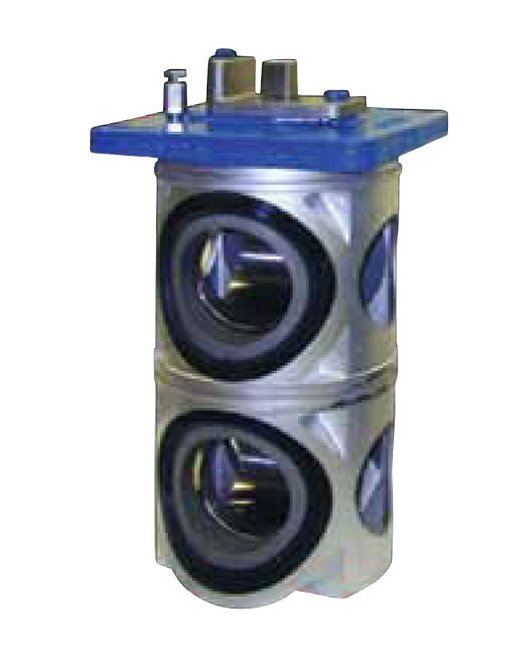

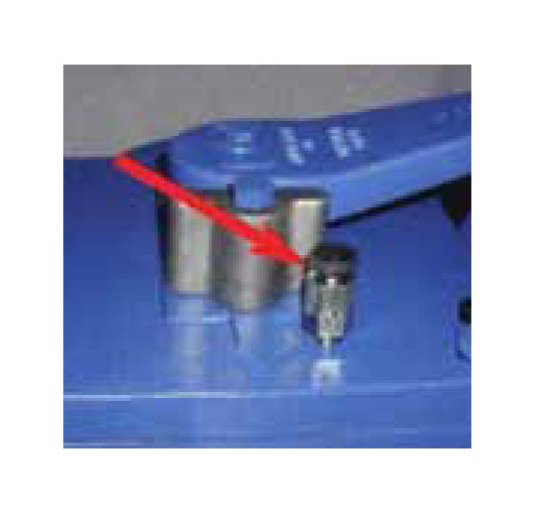

A unique flow diverter valve cartridge design isolates the two strainer basket chambers and prevents fluid bypass. An easy-to-turn handle operates the cartridge and diverts the system flow from one chamber to the other - the flow in the pipeline is never shut off.When a strainer basket needs to be cleaned, the lever handle is turned to take it out of service and to divert the flow through the other chamber. The position of the handle clearly indicates at all times which chamber is in service.No special tools are needed to access the strainer basket for cleaning. The chamber is first drained and then the cover is lifted and swung clear of the chamber opening. The dynamic diverter cartridge seals prevent fluid bypass into the out-of-service chamber- making for easy, hassle-free strainer basket servicing.A minimum of parts, easily replaced, makes service a snap. Exploded view shows simplicity of design.Should the diverter valve require service, it slides right out the top of the strainer body.Standard body vent on top of strainer makes venting quick and easy.
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design. Please contact Sure Flow Equipment Inc. for certifications.
Specifications American Society Of Mechanical Engineers Asme Cl1
200 psig
Specifications Body And Cartridge Material
Cast Iron (CI)
Specifications Connection Type
Threaded (T)
Specifications Diverted Ball Material
Stainless Steel
Specifications Prefix Size
0200
Specifications Screen Opening
156 in
Specifications Seat Material
Polytetrafluoroethylene (PTFE)/Buna N
Specifications Size
2 in
