Sure Flow 2 Inch Electric Actuator for Knife Gate Valves
Sure Flow 2 Inch Electric Actuator for Knife Gate Valves
SKU:KNI-6832a7
Enhance valve operation with Sure Flow's 2 Inch Electric Actuator. Rising stem design with manual emergency operation, limit switches, and torque switches.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Sure Flow 2 Inch Electric Actuator for Knife Gate Valves
$289.99
Quantity: 1
Claim Your Seller Account
Sure Flow 2 Inch Electric Actuator for Knife Gate Valves
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow 2 Inch Electric Actuator is a reliable and efficient solution for operating knife gate valves. Featuring a rising stem design, this actuator comes equipped with manual emergency operation, limit switches for open and closed positions, and torque switches. With precise dimensions and a torque of 177 lbf/in, this electric actuator meets International Organization for Standardization (ISO) 9001:2008 standards, ensuring top-notch quality and performance for industrial applications.

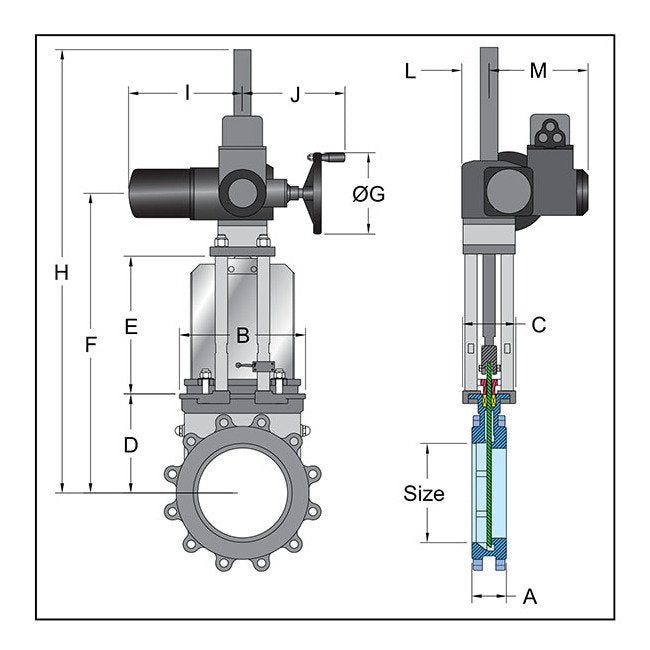

Product Specifications
Dimensions Diameter G
6 5/16 in
Dimensions Dimension A
1 37/64 in
Dimensions Dimension B
4 11/16 in
Dimensions Dimension C
3 15/16 in
Dimensions Dimension D
4 1/8 in
Dimensions Dimension E
5 5/64 in
Dimensions Dimension F
14 3/32 in
Dimensions Dimension H
21 17/32 in
Dimensions Dimension I
10 7/16 in
Dimensions Dimension J
9 13/16 in
Dimensions Dimension L
2 7/16 in
Dimensions Dimension M
9 11/32 in
Dimensions Size
2 in
Dimensions Torque
177 lbf/in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
