Sure Flow 2 Inch Fabricated Tee Type Pipe Strainer
Sure Flow 2 Inch Fabricated Tee Type Pipe Strainer
SKU:TEM-be7672
Ensure pipeline purity with the Sure Flow 2 Inch Fabricated Tee Type Pipe Strainer for ultimate equipment protection.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Sure Flow 2 Inch Fabricated Tee Type Pipe Strainer
$499.99
Quantity: 1
Claim Your Seller Account
Sure Flow 2 Inch Fabricated Tee Type Pipe Strainer
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

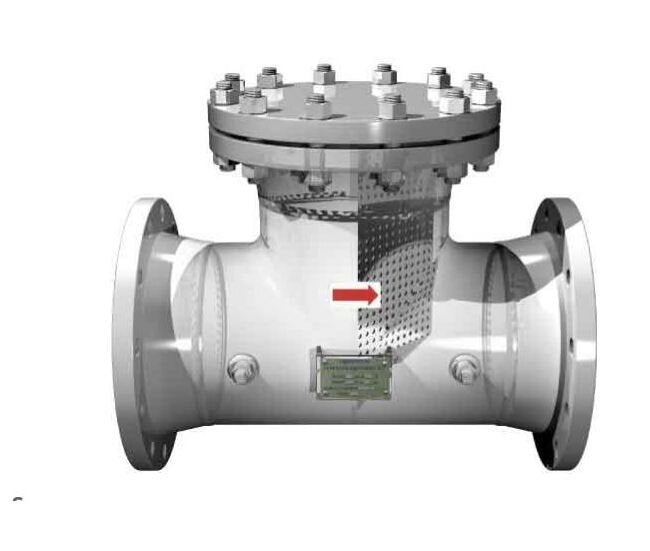

The Sure Flow 2 Inch Fabricated Tee Type Pipe Strainer is expertly crafted to efficiently remove foreign particles from pipelines, safeguarding pumps and valves. Made of durable carbon or stainless steel, this custom strainer can be tailored to meet specific requirements. Compliant with International Organization for Standardization (ISO) 9001:2008 (Intertek) standards, it offers reliable protection and versatility for industrial applications. Specify straight flow, angled flow, or angled modified type along with nominal pipe size, flange rating, pressure rating, corrosion conditions, and perforation when ordering to customize this strainer to your exact needs.
Product Specifications
Additional Information Additional Information

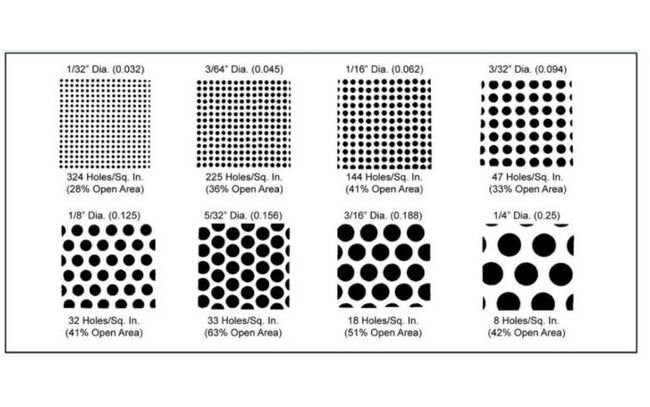

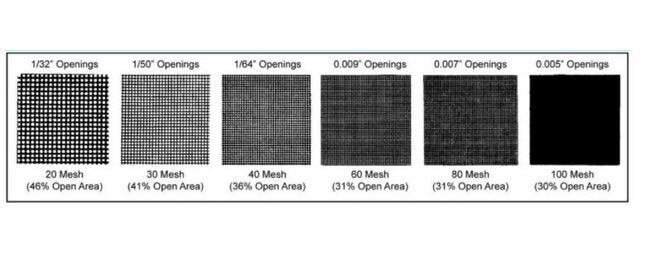

When ordering specify:Type - Straight Flow, Angled Flow, Angled ModifiedNominal Pipe SizeFlange Rating and FacingPressure Rating and FacingCorrosion Conditions, if any (type of materialPerforation (particle retention)

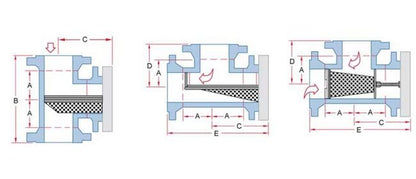

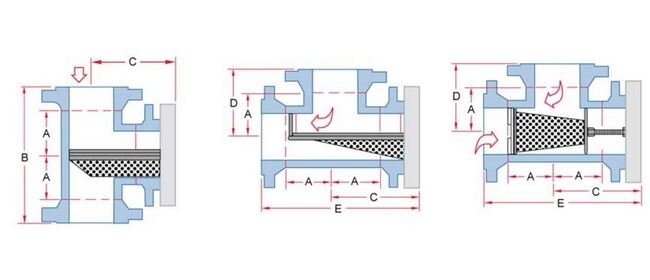

Dimensions Dimension A
2 1/2 in
Dimensions Dimension B For American Society Of Mechanical Engine
13 1/2 in
Dimensions Dimension C For American Society Of Mechanical Engine
8 5/8 in
Dimensions Dimension D For American Society Of Mechanical Engine
6 3/4 in
Dimensions Dimension E For American Society Of Mechanical Engine
15 3/8 in
Dimensions Pipe Size
2 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Flanges and bodies are designed to meet Section 1 of American Standard Code for Pressure Piping, ASA B31.1.Manufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
