Sure Flow 2 Inch Pneumatic Actuator for Knife Gate Valves
Sure Flow 2 Inch Pneumatic Actuator for Knife Gate Valves
SKU:KNI-12b1e4
Reliable 2in Sure Flow Pneumatic Actuator for Knife Gate Valves, ISO 9001:2008 certified, with various customization options and accessories.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Sure Flow 2 Inch Pneumatic Actuator for Knife Gate Valves
$399.99
Quantity: 1
Claim Your Seller Account
Sure Flow 2 Inch Pneumatic Actuator for Knife Gate Valves
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow 2 Inch Pneumatic Actuator is a durable and efficient solution for industrial applications. This double-acting on-off cylinder features an aluminum jacket, stainless steel piston rod, and nitrile coated steel piston, ensuring reliable performance. With a standard cylinder of C100/62, air connection of 1/4 in, and maximum supply pressure of 142 psi, this actuator is designed to meet rigorous operational demands. Certified to International Organization for Standardization (ISO) 9001:2008 by Intertek, this actuator offers options like hard anodized jacket, stainless steel covers, manual override, and fail-safe system. For optimal performance, consider adding positioners, solenoid valves, or flow regulators upon request. Compliant with industry standards, this actuator is suitable for valves installed horizontally with recommended U-type support plates or actuator support.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
For valves installed in a horizontal position, we recommend U-type support plates and/or actuator support.

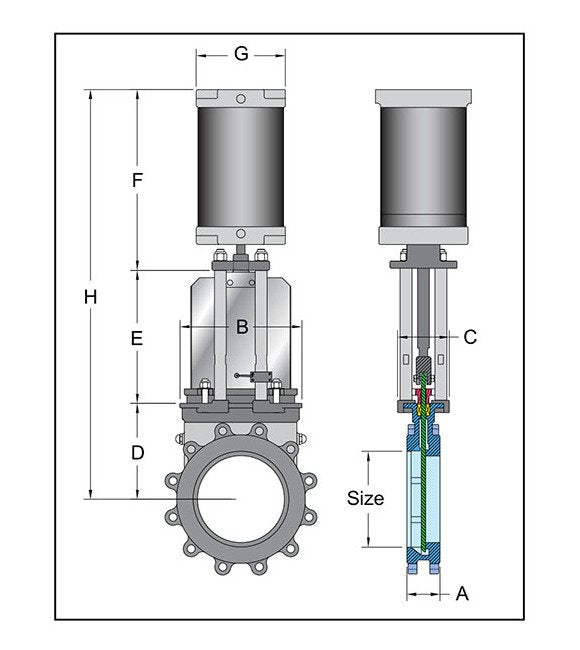

Dimensions Dimension A
1 37/64 in
Dimensions Dimension B
4 11/16 in
Dimensions Dimension C
3 15/16 in
Dimensions Dimension D
4 1/8 in
Dimensions Dimension E
5 5/64 in
Dimensions Dimension F
7 in
Dimensions Dimension G
4 17/32 in
Dimensions Dimension H
16 7/32 in
Dimensions Size
2 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Instrumentation On Request Instrumentation On Request
PositionersSolenoid valvesFlow regulatorsAir preparation units
Options Options
Hard anodized jacket and coversOver / Undersized cylinderStainless steel jacket and coversManual overrideFail safe systemTravel stops
Specifications Air Connection
1/4 in
Specifications Maximum Supply Pressure
142 psi
Specifications Minimum Supply Pressure
50 psi
Specifications Standard Cylinder
C100/62
Specifications Weight
20 lb
