Sure Flow 20" Barred Tee with Buttweld End Connections
Sure Flow 20" Barred Tee with Buttweld End Connections
SKU:BAR-30f8a7
High-quality Sure Flow 20" Barred Tee for safe Pig passage and seamless pipeline operation.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Sure Flow 20" Barred Tee with Buttweld End Connections
$399.99
Quantity: 1
Claim Your Seller Account
Sure Flow 20" Barred Tee with Buttweld End Connections
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow 20" Barred Tee with Buttweld End Connections is crafted to meet rigorous project specifications, available in Alloy, Carbon Steel, or Stainless Steel. It features a maximum pressure of 285 psi at 100°F for Water, Oil, Gas (WOG) applications. Designed with precision and adherence to ASME Class 150 standards, it ensures reliable performance in pipeline systems. Custom fitted bar sections prevent damage and ensure safe Pig passage, making it ideal for Launcher/Receiver setups and branch pipelines.
Product Specifications
Additional Information Additional Information

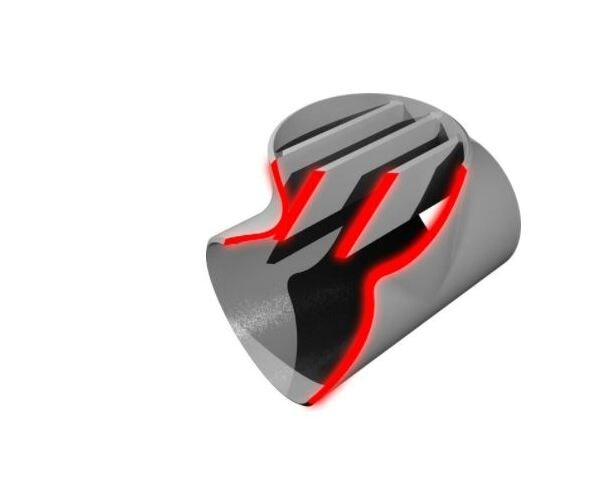

Custom fitted bar sections are welded to the branch of the buttweld Tee. The bars are added to ensure the Pig passes by the branch opening. Bar spacing is designed to prevent damage to the functional elements of the Pig.Buttweld End Connections are standard. Optional Flanged Connections in raised face or RTJ, as well as extended pup-pieces, are available. Barred Tees are used in a pipeline Launcher/Receiver system and at any branch in the pipeline to ensure safe passage of the Pig.
Construction Construction

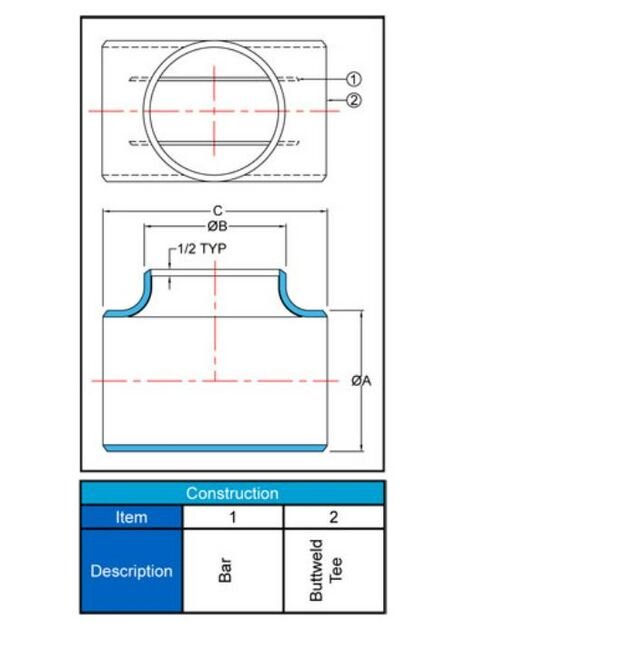

Item - 1Description - BarItem - 2Description - Buttweld Tee
Dimensions Dimension C
30 in
Dimensions Size
20 in
Dimensions Thickness At 10 Inch In Branch Size And 2 Bar
1/2 in
Dimensions Thickness At 12 Inch In Branch Size And 3 Bar
1/2 in
Dimensions Thickness At 14 Inch In Branch Size And 3 Bar
1/2 in
Dimensions Thickness At 16 Inch In Branch Size And 3 Bar
1/2 in
Dimensions Thickness At 18 Inch In Branch Size And 3 Bar
1/2 in
Dimensions Thickness At 20 Inch In Branch Size And 3 Bar
1/2 in
Dimensions Thickness At 2 Inch In Branch Size And 1 Bar
1/2 in
Dimensions Thickness At 3 Inch In Branch Size And 1 Bar
1/2 in
Dimensions Thickness At 4 Inch In Branch Size And 1 Bar
1/2 in
Dimensions Thickness At 6 Inch In Branch Size And 1 Bar
1/2 in
Dimensions Thickness At 8 Inch In Branch Size And 2 Bar
1/2 in
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 150 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Higher ASME pressure ratings available Larger sizes availableManufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
285 psi
Operating Pressures And Temperatures Pressure At 366 Degree Fahr
150 psi
Specifications Material
Alloy | Carbon Steel | Stainless Steel
Specifications Prefix Size
2000
