Sure Flow 20 Inch Electric Actuator for Knife Gate Valves
Sure Flow 20 Inch Electric Actuator for Knife Gate Valves
SKU:KNI-1368ba
Ensure precise control with the Sure Flow 20 Inch Electric Actuator. Reliable performance meeting ISO 9001:2008 standards.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Sure Flow 20 Inch Electric Actuator for Knife Gate Valves
$799.99
Quantity: 1
Claim Your Seller Account
Sure Flow 20 Inch Electric Actuator for Knife Gate Valves
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow 20 Inch Electric Actuator for Knife Gate Valves features a rising stem design for precise control. Equipped with manual emergency operation, limit switches for open/closed positions, and torque switches, this electric actuator ensures reliable performance. With dimensions meeting industry standards and certifications such as ISO 9001:2008, it offers a torque of 1593 lbf/in. Perfect for industrial applications that demand quality and compliance.

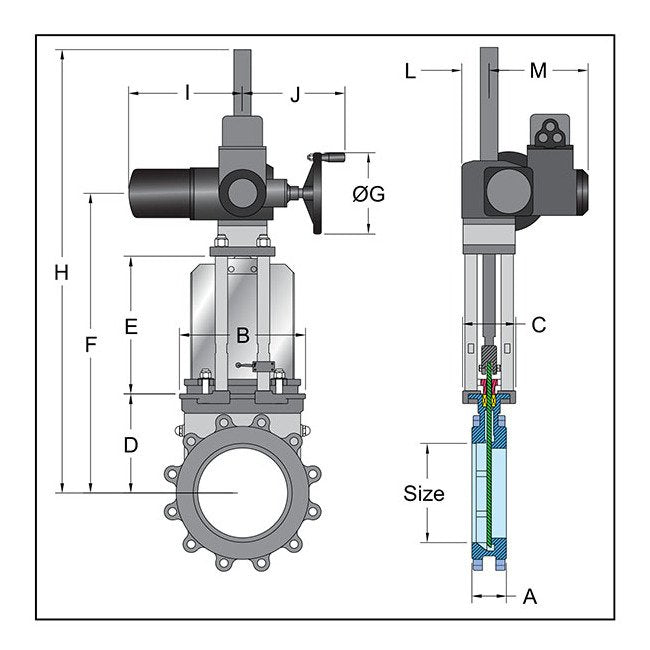

Product Specifications
Dimensions Diameter G
12 13/32 in
Dimensions Dimension A
4 21/64 in
Dimensions Dimension B
23 45/64 in
Dimensions Dimension C
10 5/8 in
Dimensions Dimension D
19 3/32 in
Dimensions Dimension E
25 29/32 in
Dimensions Dimension F
51 57/64 in
Dimensions Dimension H
75 33/64 in
Dimensions Dimension I
15 5/32 in
Dimensions Dimension J
12 25/32 in
Dimensions Dimension L
3 35/64 in
Dimensions Dimension M
11 7/32 in
Dimensions Size
20 in
Dimensions Torque
1593 lbf/in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
