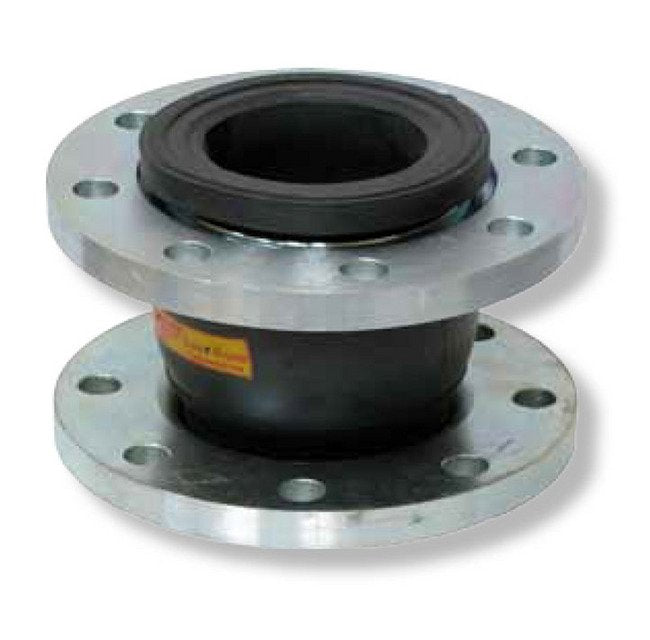

• Sure Flow 20" Single-Sphere Connector with Class 150 Floating Flange - Image 1
  • Sure Flow 20" Single-Sphere Connector with Class 150 Floating Flange - Image 2
1 2
Sure Flow Equipment, Inc. →

Sure Flow 20" Single-Sphere Connector with Class 150 Floating Flange

Sure Flow 20" Single-Sphere Connector with Class 150 Floating Flange

EXP-e8c472

Sure Flow AMS Series 20" Single-Sphere Connector with Class 150 Floating Flange - Flexible, durable, ISO 9001:2008 certified.

$299.99
$299.99
Sale

Initiate Order

Sure Flow 20" Single-Sphere Connector with Class 150 Floating Flange

Sure Flow 20" Single-Sphere Connector with Class 150 Floating Flange

$299.99

Quantity: 1

Claim Your Seller Account

Sure Flow 20" Single-Sphere Connector with Class 150 Floating Flange

Sure Flow 20" Single-Sphere Connector with Class 150 Floating Flange

$299.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

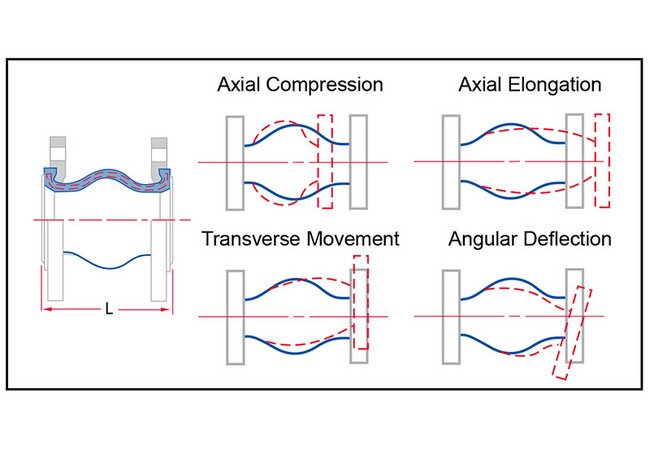

The Sure Flow AMS Series 20-inch Single-Sphere Connector Fitting with Class 150 Floating Flange is a premium solution for expansion joint applications. Designed to handle axial compression, elongation, and transverse movement with a tolerance of ±3/4 inch, this fitting allows for angular deflection of up to 15 degrees, ensuring flexibility and reliability in operation. Constructed with high-quality materials such as CS Zinc Plated flanges, carbon steel wire, special synthetic rubber elastomer, and synthetic fiber reinforcing fabric, this fitting is built to withstand pressures of up to 45 psig, vacuum ratings of 26 inHg, and temperatures ranging from -10 to 115°C | 14 to 240°F. Certified to meet International Organization for Standardization (ISO) 9001:2008 standards by Intertek, this product guarantees quality and performance.

Product Specifications

Construction Construction
Name - FlangesMaterial - CS Zinc PlatedName - WireMaterial - Carbon Steel Wire StrandName - ElastomerMaterial - Special Synthetic RubberName - Reinforcing FabricMaterial - Synthetic Fiber (Neoprene)
Dimensions Angular Deflection
15 º
Dimensions Axial Compression
3/4 in
Dimensions Axial Elongation
1/2 in
Dimensions Dimension L
8 in
Dimensions Prefix Size
2000
Dimensions Shipping Weight
170 lb
Dimensions Size
20 in
Dimensions Transverse Movement Tolerance
3/4 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
Operating Pressures And Temperatures Operating Pressure
45 psig
Operating Pressures And Temperatures Temperature
-10 to 115 ºC | 14 to 240 ºF
Operating Pressures And Temperatures Vacuum Rating
26 inHg
Specifications Series
AMS
