Sure Flow 24" Ductile Iron Elastic Swing Foot Valve - ASME Class 125
Sure Flow 24" Ductile Iron Elastic Swing Foot Valve - ASME Class 125
SKU:DOU-61ee39
Sure Flow 24" Ductile Iron Elastic Swing Foot Valve - ASME Class 125 for reliable municipal and industrial applications.
Regular price
$1,269.99
Regular price
Sale price
$1,269.99
Unit price
per
Initiate Order
Sure Flow 24" Ductile Iron Elastic Swing Foot Valve - ASME Class 125
$1,269.99
Quantity: 1
Claim Your Seller Account
Sure Flow 24" Ductile Iron Elastic Swing Foot Valve - ASME Class 125
$1,269.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow FVCEXF125 24-inch Ductile Iron Elastic Swing Foot Valve with Flanged End Connections is a robust solution for municipal and industrial applications. Constructed with epoxy-coated ductile iron and ASME Class 125 flanges, this valve ensures reliable performance with 100% uninterrupted flow. It features a one-piece disc with a steel-reinforced insert for secure closure. Suitable for horizontal or vertical installations, this valve is designed for continuous flow applications and comes with a pert. stainless steel screen for added durability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
The one-piece disc hinge and flapper can be repaired without removal of the valve from the line. The Elastic Swing Foot Valve is designed for continuous flow applications and is not recommended for reciprocating pumps. The Elastic Swing Foot Valve can be installed in a vertical or horizontal pipeline.
Construction Construction

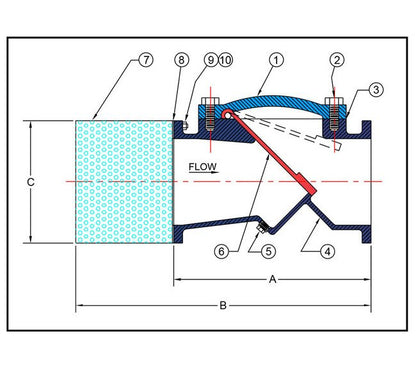

Item - 1Description - CoverItem - 2Description - Cover BoltsItem - 3Description - GasketItem - 4Description - Cast BodyItem - 5Description - DrainItem - 6Description - DiscItem - 7Description - Screen AssemblyItem - 8Description - Plate FlangeItem - 9Description - StudsItem - 10Description - Nuts
Dimensions Dimension A
47 15/16 in
Dimensions Dimension B
65 7/16 in
Dimensions Dimension C
32 1/4 in
Dimensions Drain Size
3 in
Dimensions Prefix Size
2400
Dimensions Shipping Weight
3,120 lb
Dimensions Size
24 in
Dimensions Valve Flow Coefficient Cv
16,800
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Valve comes standard with 1/8" pert. Stainless Steel Screen. Options are available.Horizontal Flow: Valve must be installed with cover on top to ensure proper operation.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
150 psi
Specifications Material
Ductile Iron
Specifications Orientation
Horizontal | Vertical
