Sure Flow 24-Inch ASME Class 150 Paddle Spacer

Sure Flow 24-Inch ASME Class 150 Paddle Spacer

LIN-005a31

Ensure seamless pipeline reactivation with the precision-engineered 24-Inch ASME Class 150 Paddle Spacer from Sure Flow.

$299.99
$299.99
Sale

Initiate Order

Sure Flow 24-Inch ASME Class 150 Paddle Spacer

Sure Flow 24-Inch ASME Class 150 Paddle Spacer

$299.99

Quantity: 1

Claim Your Seller Account

Sure Flow 24-Inch ASME Class 150 Paddle Spacer

Sure Flow 24-Inch ASME Class 150 Paddle Spacer

$299.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Sure Flow 24-Inch ASME Class 150 Paddle Spacer is expertly crafted from stainless steel, meeting the stringent ASME B16.48 specifications for durability and reliability. This component, serving as the open half of a Spectacle Blind, features precise dimensions and a robust design to withstand pressures up to 275 psi at 100°F, making it ideal for critical piping systems. Designed for ease of use and dependable performance, this paddle spacer ensures a smooth transition when reactivating pipelines, offering unparalleled quality approved by industry standards.

Product Specifications

Additional Information Additional Information
Sure Flow Equipment Line Blind thicknesses are based on ASME B16.48 specifications and are designed to withstand any pressure - temperature combination that an ASME flange will withstand.One coat of standard shop primer will be applied to all carbon steel Line Blinds unless specified differently.Mill finish is standard. Other surface finishes are available. Contact factory for options. Standard materials are: SA516 Gr.70304 Stainless Steel316 Stainless Steel Other alloys can be furnished upon requestSure Flow Equipment Line Blinds are produced in strict accordance with the following codes of practice: ASME B16.48ASME B16.5ASME B16.20ASME B16.47 (For larger diameter flanges)

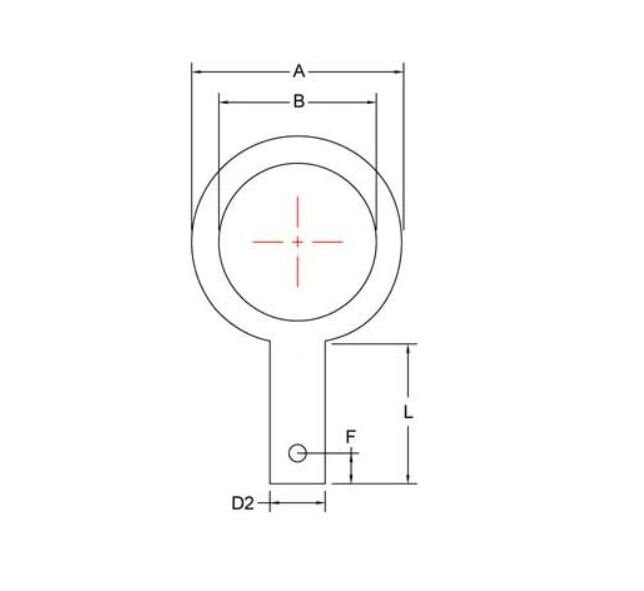

Dimensions Diameter E
1 3/8 in
Dimensions Dimension A
28 1/8 in
Dimensions Dimension B
24 in
Dimensions Dimension C
29 1/2 in
Dimensions Dimension D1
5 1/2 in
Dimensions Dimension D2
1 1/2 in
Dimensions Dimension F
1 in
Dimensions Dimension L
5 in
Dimensions Size
24 in
Dimensions Thickness
1 1/4 in
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 150 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Higher ASME pressure ratings availableLarger sizes availableManufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
275 psi
Operating Pressures And Temperatures Pressure At 366 Degree Fahr
150 psi
Specifications Material
Stainless Steel
Specifications Prefix Size
2400
