Sure Flow 24-Inch Electric Actuator for Knife Gate Valves
Sure Flow 24-Inch Electric Actuator for Knife Gate Valves
SKU:KNI-3323fe
Precision control for knife gate valves with Sure Flow 24-Inch Electric Actuator. ISO 9001:2008 certified for reliability.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Sure Flow 24-Inch Electric Actuator for Knife Gate Valves
$799.99
Quantity: 1
Claim Your Seller Account
Sure Flow 24-Inch Electric Actuator for Knife Gate Valves
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow 24-Inch Electric Actuator is designed for precision control of knife gate valves in industrial settings. This actuator features a rising stem, manual emergency operation, limit switches for open and closed positions, and torque switches. With dimensions meeting institutional standards and a torque of 1859 lbf/in, it ensures reliable and efficient operation. Certified to the ISO 9001:2008 standard by Intertek, this electric actuator guarantees superior quality and performance.

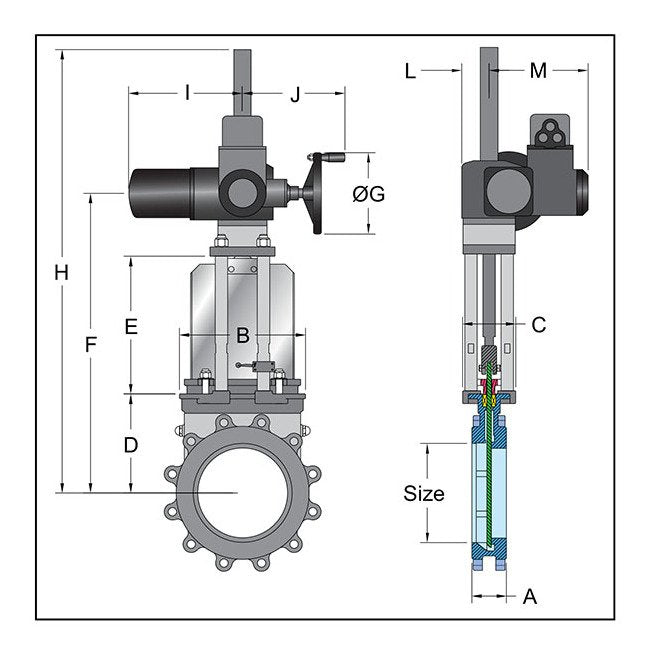

Product Specifications
Dimensions Diameter G
12 13/32 in
Dimensions Dimension A
4 21/64 in
Dimensions Dimension B
27 7/8 in
Dimensions Dimension C
10 5/8 in
Dimensions Dimension D
23 7/32 in
Dimensions Dimension E
29 27/32 in
Dimensions Dimension F
60 1/32 in
Dimensions Dimension H
87 33/64 in
Dimensions Dimension I
15 5/32 in
Dimensions Dimension J
12 25/32 in
Dimensions Dimension L
3 35/64 in
Dimensions Dimension M
11 7/32 in
Dimensions Size
24 in
Dimensions Torque
1859 lbf/in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
