Sure Flow 28 Inch Electric Actuator for Knife Gate Valves
Sure Flow 28 Inch Electric Actuator for Knife Gate Valves
SKU:KNI-05a704
Enhance valve automation with the Sure Flow 28 Inch Electric Actuator. Rising stem, limit switches, and ISO 9001:2008 certified.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Sure Flow 28 Inch Electric Actuator for Knife Gate Valves
$899.99
Quantity: 1
Claim Your Seller Account
Sure Flow 28 Inch Electric Actuator for Knife Gate Valves
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your operations with the Sure Flow 28 Inch Electric Actuator designed for knife gate valves. This electric actuator features a rising stem, manual emergency operation, limit switches for open/closed positions, and torque switches. With precise dimensions and a torque of 2036 lbf/in, this electric actuator meets the highest industry standards including ISO 9001:2008 (Intertek) certification, ensuring reliable performance and durability for institutional and government applications.

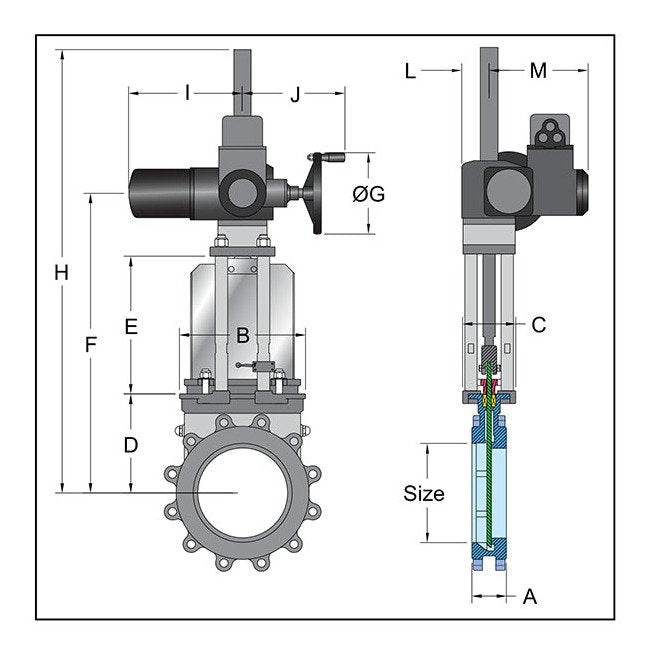

Product Specifications
Dimensions Diameter G
12 13/32 in
Dimensions Dimension A
4 21/64 in
Dimensions Dimension B
32 53/64 in
Dimensions Dimension C
14 31/32 in
Dimensions Dimension D
27 1/64 in
Dimensions Dimension E
35 7/16 in
Dimensions Dimension F
69 13/32 in
Dimensions Dimension H
112 1/16 in
Dimensions Dimension I
15 5/32 in
Dimensions Dimension J
12 25/32 in
Dimensions Dimension L
3 35/64 in
Dimensions Dimension M
11 7/32 in
Dimensions Size
28 in
Dimensions Torque
2036 lbf/in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
