Sure Flow 28 Inch Pneumatic Actuator
Sure Flow 28 Inch Pneumatic Actuator
SKU:KNI-ca0dae
Sure Flow 28 Inch Pneumatic Actuator - Durable, precise, and compliant with ISO 9001:2008. Ideal for institutional & government use.
Regular price
$1,499.99
Regular price
Sale price
$1,499.99
Unit price
per
Initiate Order
Sure Flow 28 Inch Pneumatic Actuator
$1,499.99
Quantity: 1
Claim Your Seller Account
Sure Flow 28 Inch Pneumatic Actuator
$1,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow 28 Inch Pneumatic Actuator features a robust design with an aluminum jacket and covers, stainless steel piston rod, and nitrile coated steel piston, ensuring durability and reliable performance. With a standard cylinder of C350/730, air connection of 3/4 in, and maximum supply pressure of 142 psi, this actuator offers precise control and efficiency. Certified under ISO 9001:2008, it meets the highest industry standards, making it ideal for institutional and government procurement.
Product Specifications
Additional Information Additional Information
For valves installed in a horizontal position, we recommend U-type support plates and/or actuator support.

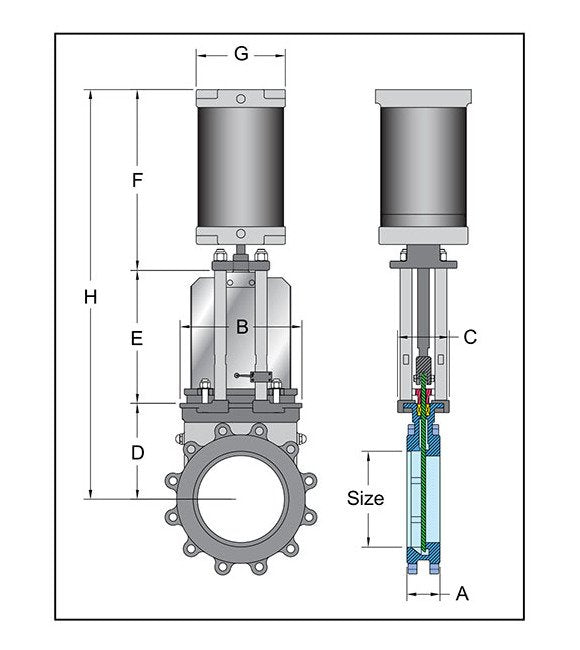

Dimensions Dimension A
4 21/64 in
Dimensions Dimension B
32 27/32 in
Dimensions Dimension C
14 31/32 in
Dimensions Dimension D
27 in
Dimensions Dimension E
35 7/16 in
Dimensions Dimension F
37 51/64 in
Dimensions Dimension G
17 31/64 in
Dimensions Dimension H
100 15/64 in
Dimensions Size
28 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Instrumentation On Request Instrumentation On Request
PositionersSolenoid valvesFlow regulatorsAir preparation units
Options Options
Hard anodized jacket and coversOver / Undersized cylinderStainless steel jacket and coversManual overrideFail safe systemTravel stops
Specifications Air Connection
3/4 in
Specifications Maximum Supply Pressure
142 psi
Specifications Minimum Supply Pressure
50 psi
Specifications Standard Cylinder
C350/730
Specifications Weight
1146 lb
