Sure Flow 3/4" Stainless Steel Threaded Duplex Strainer
Sure Flow 3/4" Stainless Steel Threaded Duplex Strainer
SKU:DUP-da6b0f
Ensure uninterrupted system operation and hassle-free maintenance with the Sure Flow 3/4" Stainless Steel Threaded Duplex Strainer.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Sure Flow 3/4" Stainless Steel Threaded Duplex Strainer
$129.99
Quantity: 1
Claim Your Seller Account
Sure Flow 3/4" Stainless Steel Threaded Duplex Strainer
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow 3/4" Stainless Steel Threaded Duplex Strainer effectively removes debris from pipelines, safeguarding sensitive system components with ease. Featuring a unique flow diverter valve cartridge design, this duplex strainer prevents fluid bypass, ensuring uninterrupted system operation. With an easy-to-access strainer basket and simple servicing process, cleanup is hassle-free. Meeting ISO 9001:2008 standards, this duplex strainer boasts a sturdy stainless steel construction and ASME CL.150 certification for reliable performance.
Product Specifications
Additional Information Additional Information

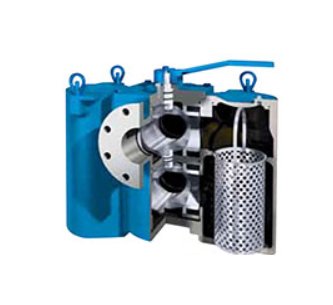

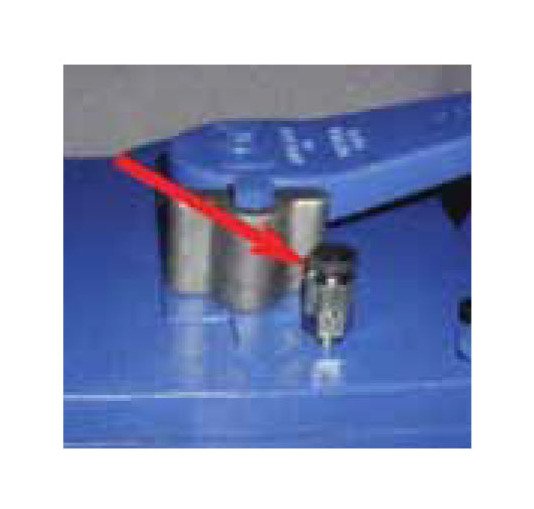

A unique flow diverter valve cartridge design isolates the two strainer basket chambers and prevents fluid bypass. An easy-to-turn handle operates the cartridge and diverts the system flow from one chamber to the other - the flow in the pipeline is never shut off.When a strainer basket needs to be cleaned, the lever handle is turned to take it out of service and to divert the flow through the other chamber. The position of the handle clearly indicates at all times which chamber is in service.No special tools are needed to access the strainer basket for cleaning. The chamber is first drained and then the cover is lifted and swung clear of the chamber opening. The dynamic diverter cartridge seals prevent fluid bypass into the out-of-service chamber- making for easy, hassle-free strainer basket servicing.A minimum of parts, easily replaced, makes service a snap. Exploded view shows simplicity of design.Should the diverter valve require service, it slides right out the top of the strainer body.Standard body vent on top of strainer makes venting quick and easy.
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design. Please contact Sure Flow Equipment Inc. for certifications.
Specifications American Society Of Mechanical Engineers Asme Cl1
200 psig
Specifications Body And Cartridge Material
Stainless Steel (SS)
Specifications Connection Type
Threaded (T)
Specifications Diverted Ball Material
Stainless Steel
Specifications Prefix Size
0075
Specifications Screen Opening
156 in
Specifications Seat Material
Polytetrafluoroethylene (PTFE)/Buna N
Specifications Size
3/4 in
