Sure Flow 3" Barred Tee with Buttweld End Connections
Sure Flow 3" Barred Tee with Buttweld End Connections
SKU:BAR-436837
High-quality 3" Barred Tee with buttweld ends, ASME Class 150-2500, 285 psi at 100°F, for safe Pig passage
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Sure Flow 3" Barred Tee with Buttweld End Connections
$129.99
Quantity: 1
Claim Your Seller Account
Sure Flow 3" Barred Tee with Buttweld End Connections
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

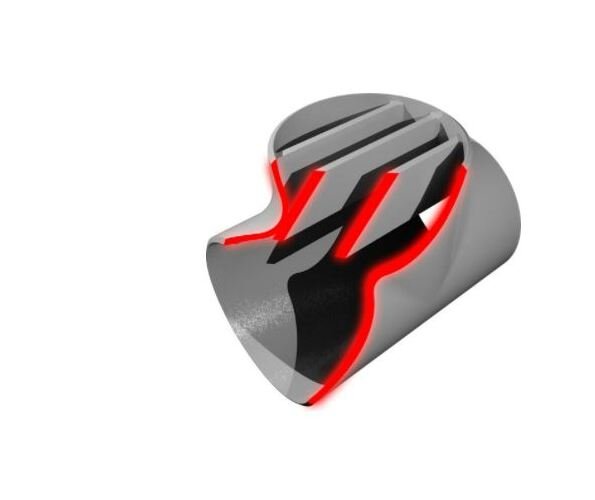

The Sure Flow 3-inch Barred Tee with buttweld end connections is a high-quality pipeline component designed to meet ASME Class 150 to 2500 standards. Constructed from Alloy, Carbon Steel, or Stainless Steel, this Tee ensures optimal performance with a pressure rating of 285 psi at 100°F for water, oil, and gas temperature. Its custom fitted bar sections prevent Pig damage, allowing safe passage, while optional flanged connections provide versatility. Ideal for pipeline Launcher/Receiver systems, this Tee conforms to industry standards and is fabricated with precision for reliable use.
Product Specifications
Additional Information Additional Information
Custom fitted bar sections are welded to the branch of the buttweld Tee. The bars are added to ensure the Pig passes by the branch opening. Bar spacing is designed to prevent damage to the functional elements of the Pig.Buttweld End Connections are standard. Optional Flanged Connections in raised face or RTJ, as well as extended pup-pieces, are available. Barred Tees are used in a pipeline Launcher/Receiver system and at any branch in the pipeline to ensure safe passage of the Pig.

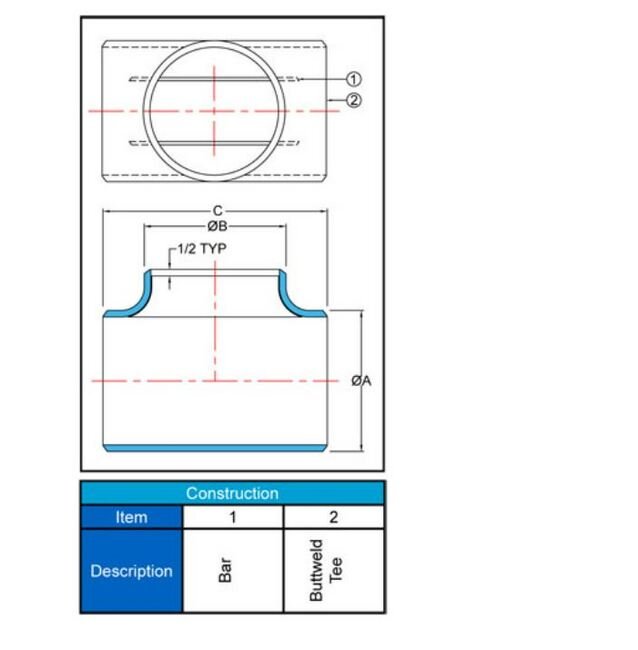

Construction Construction
Item - 1Description - BarItem - 2Description - Buttweld Tee
Dimensions Dimension C
6 3/4 in
Dimensions Size
3 in
Dimensions Thickness At 2 Inch In Branch Size And 2 Bar
1/4 in
Dimensions Thickness At 3 Inch In Branch Size And 2 Bar
1/4 in
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 150 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Higher ASME pressure ratings available Larger sizes availableManufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
285 psi
Operating Pressures And Temperatures Pressure At 366 Degree Fahr
150 psi
Specifications Material
Alloy | Carbon Steel | Stainless Steel
Specifications Prefix Size
0300
