Sure Flow 3' Buttweld End Barred Tee
Sure Flow 3' Buttweld End Barred Tee
SKU:BAR-61ea12
High-performance 3' Buttweld End Barred Tee for safe and efficient Pig passage in pipelines.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Sure Flow 3' Buttweld End Barred Tee
$399.99
Quantity: 1
Claim Your Seller Account
Sure Flow 3' Buttweld End Barred Tee
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow 3 Inch Buttweld End Barred Tee is expertly crafted to meet the demanding needs of the industry, manufactured with precision in Alloy, Carbon Steel, or Stainless Steel. With operating pressures reaching 275 psi at 100°F for Water, Oil, Gas (WOG) applications and built to ASME Class 150 standards, this Tee ensures optimal performance and reliability. The custom-fitted bar sections prevent damage to the Pig and guarantee safe passage through the pipeline, making it a preferred choice for pipeline Launcher/Receiver systems.
Product Specifications
Additional Information Additional Information

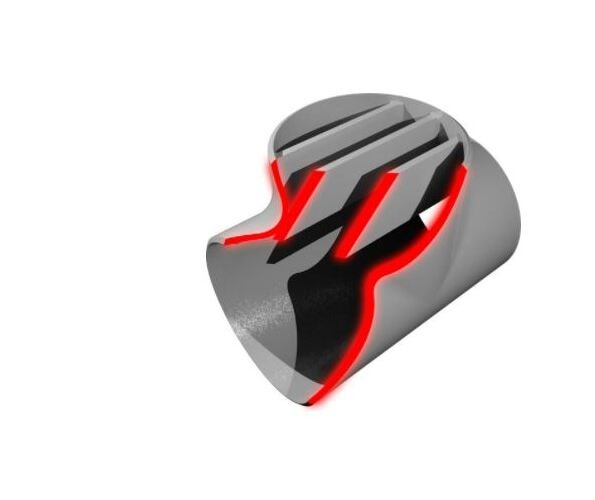

Custom fitted bar sections are welded to the branch of the buttweld Tee. The bars are added to ensure the Pig passes by the branch opening. Bar spacing is designed to prevent damage to the functional elements of the Pig.Buttweld End Connections are standard. Optional Flanged Connections in raised face or RTJ, as well as extended pup-pieces, are available. Barred Tees are used in a pipeline Launcher/Receiver system and at any branch in the pipeline to ensure safe passage of the Pig.

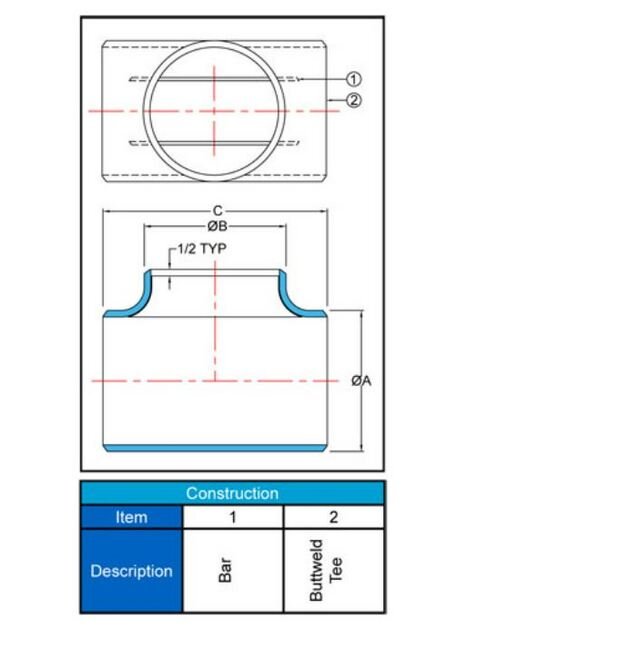

Construction Construction
Item - 1Description - BarItem - 2Description - Buttweld Tee
Dimensions Dimension C
6 3/4 in
Dimensions Size
3 in
Dimensions Thickness At 2 Inch In Branch Size And 2 Bar
1/4 in
Dimensions Thickness At 3 Inch In Branch Size And 2 Bar
1/4 in
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 150 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Higher ASME pressure ratings available Larger sizes availableManufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
275 psi
Operating Pressures And Temperatures Pressure At 366 Degree Fahr
150 psi
Specifications Material
Alloy | Carbon Steel | Stainless Steel
Specifications Prefix Size
0300
