Sure Flow 3" Cast 316 Stainless Steel Simplex Basket Strainer
Sure Flow 3" Cast 316 Stainless Steel Simplex Basket Strainer
SKU:BAS-788402
Efficiently capture solid particulate with the Sure Flow 3" Cast 316 Stainless Steel Basket Strainer, featuring a top removal design for easy maintenance.
Regular price
$259.99
Regular price
Sale price
$259.99
Unit price
per
Initiate Order
Sure Flow 3" Cast 316 Stainless Steel Simplex Basket Strainer
$259.99
Quantity: 1
Claim Your Seller Account
Sure Flow 3" Cast 316 Stainless Steel Simplex Basket Strainer
$259.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow 3" Cast 316 Stainless Steel Simplex Basket Strainer is designed for applications with solid particulate. Featuring a top removal basket screen with a lifting handle, this durable strainer allows for easy cleaning and disposal of captured particles. The 'Swivel Clamp Cover' ensures quick screen removal without tools, with Fluorocarbon O-ring seals for hassle-free maintenance. With ASTM A351 Grade CF8M construction and a perforated standard screen, this strainer meets high industry standards including ISO 9001:2008, making it ideal for demanding industrial environments.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Cast 316 Stainless Steel
Construction Cover Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M O-Ring Fluorocarbon (FKM)
Construction Screen Material
Stainless Steel

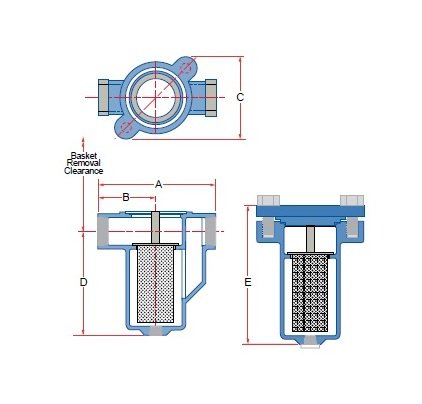

Dimensions Basket Removal Clearance
15 in
Dimensions Dimension A
13 1/4 in
Dimensions Dimension B
5 3/8 in
Dimensions Dimension C
8 5/16 in
Dimensions Dimension D
12 in
Dimensions Dimension E
15 3/4 in
Dimensions Drain Size
1 1/2 in
Dimensions Prefix Size
0300
Dimensions Shipping Weight
70 lb
Dimensions Size
3 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
275 psi
Standard Screens Perforated Standard Screen
1/32 in
Standard Screens Screen Opening
0.032 in
