Sure Flow 3-Inch Barred Tee with Buttweld Connections
Sure Flow 3-Inch Barred Tee with Buttweld Connections
SKU:BAR-a9fac1
High-performance Sure Flow 3-Inch Barred Tee for safe Pig passage in pipelines. Custom fitted with buttweld connections.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Sure Flow 3-Inch Barred Tee with Buttweld Connections
$399.99
Quantity: 1
Claim Your Seller Account
Sure Flow 3-Inch Barred Tee with Buttweld Connections
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow 3-Inch Barred Tee with Buttweld Connections is expertly crafted to meet the highest industry standards and designed for superior performance in pipeline systems. Made from top-quality Alloy, Carbon Steel, or Stainless Steel materials, this Tee operates at a pressure of 740 psi at 100°F WOG temperature. With buttweld end connections as standard and optional flanged connections available, it ensures safe passage for Pigs in your pipeline while preventing damage to functional elements. Custom fitted bar sections and precise construction make this Tee an essential component for pipeline Launchers and Receivers.
Product Specifications
Additional Information Additional Information

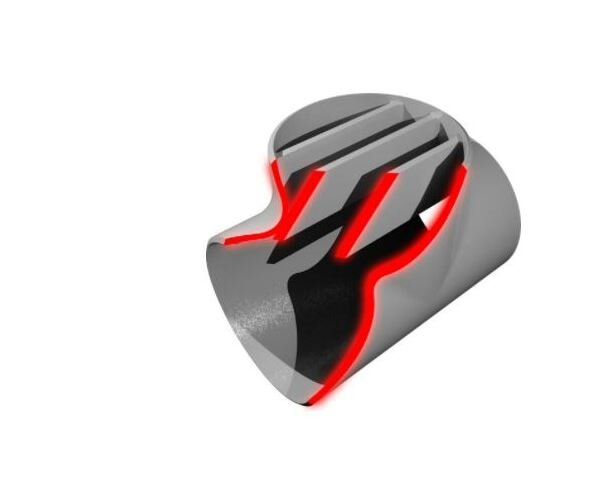

Custom fitted bar sections are welded to the branch of the buttweld Tee. The bars are added to ensure the Pig passes by the branch opening. Bar spacing is designed to prevent damage to the functional elements of the Pig.Buttweld End Connections are standard. Optional Flanged Connections in raised face or RTJ, as well as extended pup-pieces, are available. Barred Tees are used in a pipeline Launcher/Receiver system and at any branch in the pipeline to ensure safe passage of the Pig.

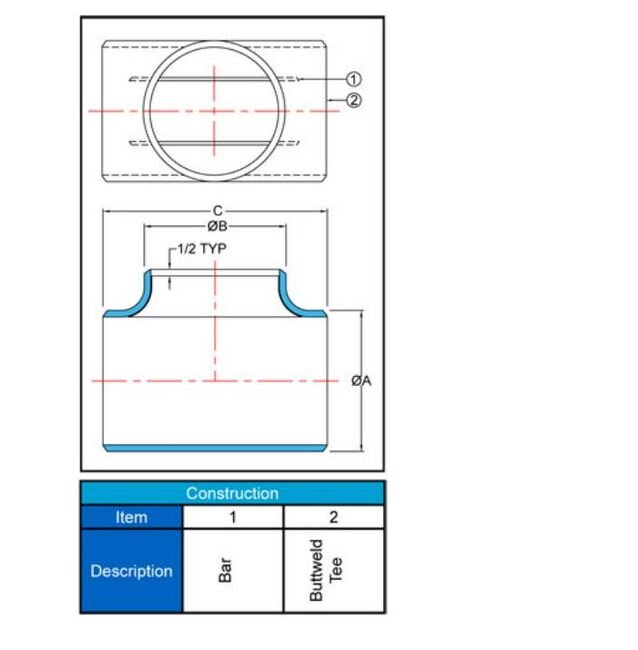

Construction Construction
Item - 1Description - BarItem - 2Description - Buttweld Tee
Dimensions Dimension C
6 3/4 in
Dimensions Size
3 in
Dimensions Thickness At 2 Inch In Branch Size And 2 Bar
1/4 in
Dimensions Thickness At 3 Inch In Branch Size And 2 Bar
1/4 in
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 150 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Higher ASME pressure ratings available Larger sizes availableManufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
740 psi
Operating Pressures And Temperatures Pressure At 366 Degree Fahr
150 psi
Specifications Material
Alloy | Carbon Steel | Stainless Steel
Specifications Prefix Size
0300
