Sure Flow 3 Inch Electric Actuator for Knife Gate Valves
Sure Flow 3 Inch Electric Actuator for Knife Gate Valves
SKU:KNI-5249ee
Reliable Sure Flow 3 Inch Electric Actuator for precise valve control. ISO 9001:2008 certified.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Sure Flow 3 Inch Electric Actuator for Knife Gate Valves
$349.99
Quantity: 1
Claim Your Seller Account
Sure Flow 3 Inch Electric Actuator for Knife Gate Valves
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow 3 Inch Electric Actuator is a reliable solution for precise valve control. This actuator features a rising stem design and comes equipped with manual emergency operation, limit switches for open/closed positions, and torque switches. With dimensions meeting industry standards, including a torque rating of 265 lbf/in, this electric actuator ensures efficient and accurate valve operation. Certified under ISO 9001:2008 by Intertek, it guarantees quality performance for industrial applications.
Product Specifications

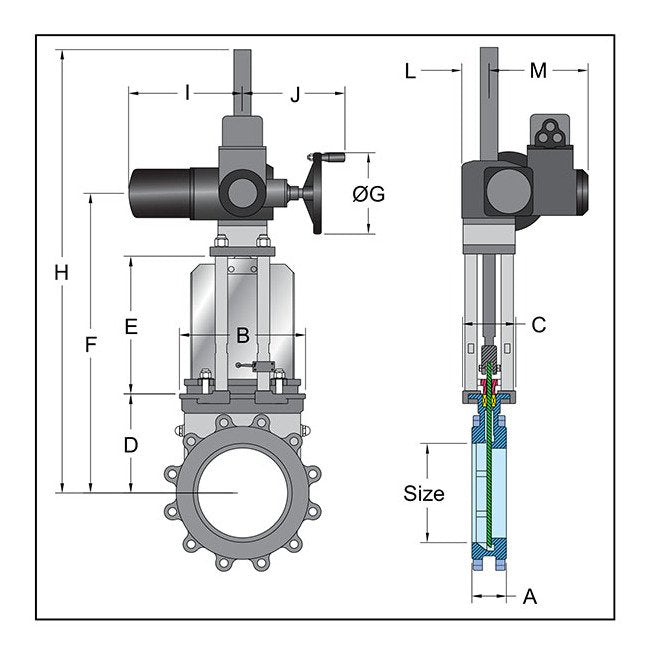

Dimensions Diameter G
6 5/16 in
Dimensions Dimension A
1 31/32 in
Dimensions Dimension B
5 7/8 in
Dimensions Dimension C
3 15/16 in
Dimensions Dimension D
4 7/8 in
Dimensions Dimension E
6 3/8 in
Dimensions Dimension F
16 57/64 in
Dimensions Dimension H
23 37/64 in
Dimensions Dimension I
10 7/16 in
Dimensions Dimension J
9 13/16 in
Dimensions Dimension L
2 7/16 in
Dimensions Dimension M
9 11/32 in
Dimensions Size
3 in
Dimensions Torque
265 lbf/in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
