Sure Flow 30-Inch Electric Actuator for Knife Gate Valves
Sure Flow 30-Inch Electric Actuator for Knife Gate Valves
SKU:KNI-01894d
Ensure precise valve control with the Sure Flow 30-Inch Electric Actuator. ISO 9001:2008 certified.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Sure Flow 30-Inch Electric Actuator for Knife Gate Valves
$899.99
Quantity: 1
Claim Your Seller Account
Sure Flow 30-Inch Electric Actuator for Knife Gate Valves
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow 30-Inch Electric Actuator is a reliable solution for precise valve control in industrial applications. This actuator features a rising stem design and is equipped with manual emergency operation, limit switches (open/closed), and torque switches. With dimensions meticulously engineered for compatibility, it offers a torque of 2301 lbf/in. Certified by the International Organization for Standardization (ISO) 9001:2008 (Intertek), this electric actuator ensures quality performance and adherence to industry standards.

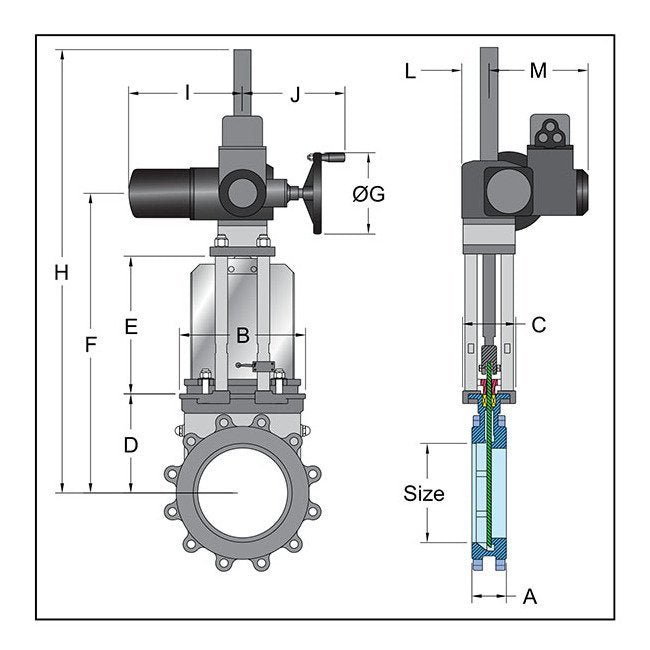

Product Specifications
Dimensions Diameter G
15 3/4 in
Dimensions Dimension A
4 21/64 in
Dimensions Dimension B
34 13/16 in
Dimensions Dimension C
14 31/32 in
Dimensions Dimension D
29 59/64 in
Dimensions Dimension E
37 13/64 in
Dimensions Dimension F
74 3/32 in
Dimensions Dimension H
116 47/64 in
Dimensions Dimension I
15 5/32 in
Dimensions Dimension J
13 1/16 in
Dimensions Dimension L
3 35/64 in
Dimensions Dimension M
11 7/32 in
Dimensions Size
30 in
Dimensions Torque
2301 lbf/in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
