Sure Flow 30-Inch Pneumatic Actuator for Knife Gate Valves

Sure Flow 30-Inch Pneumatic Actuator for Knife Gate Valves

KNI-cdf1e2

Enhance industrial operations with the Sure Flow 30-Inch Pneumatic Actuator for Knife Gate Valves. Durable, reliable, and compliant with ISO standards.

$1,899.99
$1,899.99
Sale

Initiate Order

Sure Flow 30-Inch Pneumatic Actuator for Knife Gate Valves

Sure Flow 30-Inch Pneumatic Actuator for Knife Gate Valves

$1,899.99

Quantity: 1

Claim Your Seller Account

Sure Flow 30-Inch Pneumatic Actuator for Knife Gate Valves

Sure Flow 30-Inch Pneumatic Actuator for Knife Gate Valves

$1,899.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Upgrade your industrial operations with the Sure Flow 30-inch Pneumatic Actuator designed for Knife Gate Valves. This high-quality actuator features a durable aluminum jacket with stainless steel piston rod, ensuring reliability and longevity. With standard cylinder C350/780, this actuator operates between 50 to 142 psi, meeting ISO 9001:2008 standards. Options include hard anodized jacket, manual override, and fail-safe system, providing versatility and safety. For optimal performance, consider adding positioners, solenoid valves, or flow regulators. Trust Sure Flow for superior pneumatic solutions.

Product Specifications

Additional Information Additional Information
For valves installed in a horizontal position, we recommend U-type support plates and/or actuator support.

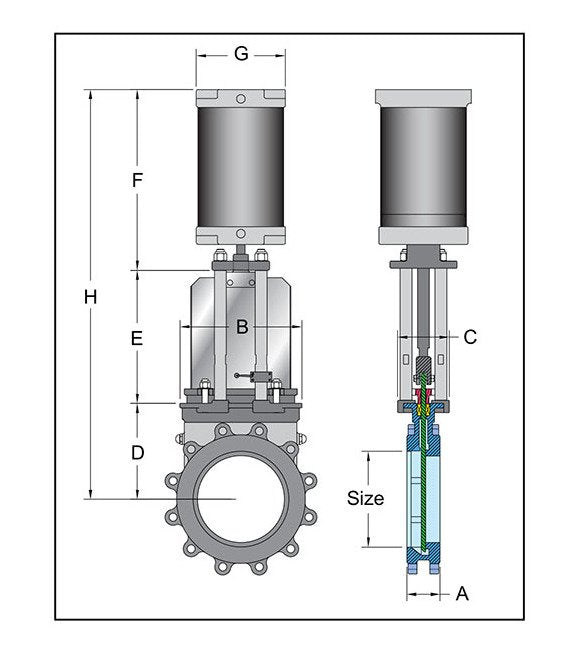

Dimensions Dimension A
4 21/64 in
Dimensions Dimension B
34 13/16 in
Dimensions Dimension C
14 31/32 in
Dimensions Dimension D
29 59/64 in
Dimensions Dimension E
37 13/64 in
Dimensions Dimension F
40 5/32 in
Dimensions Dimension G
17 31/64 in
Dimensions Dimension H
107 9/32 in
Dimensions Size
30 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Instrumentation On Request Instrumentation On Request
PositionersSolenoid valvesFlow regulatorsAir preparation units
Options Options
Hard anodized jacket and coversOver / Undersized cylinderStainless steel jacket and coversManual overrideFail safe systemTravel stops
Specifications Air Connection
3/4 in
Specifications Maximum Supply Pressure
142 psi
Specifications Minimum Supply Pressure
50 psi
Specifications Standard Cylinder
C350/780
Specifications Weight
1290 lb
