Sure Flow 32 Inch Electric Actuator for Knife Gate Valves
Sure Flow 32 Inch Electric Actuator for Knife Gate Valves
SKU:KNI-f3d9de
Ensure precise valve control with the Sure Flow 32 Inch Electric Actuator designed for industrial applications. ISO 9001:2008 certified.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
Sure Flow 32 Inch Electric Actuator for Knife Gate Valves
$699.99
Quantity: 1
Claim Your Seller Account
Sure Flow 32 Inch Electric Actuator for Knife Gate Valves
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow 32 Inch Electric Actuator is a reliable solution for precision valve control in industrial settings. This actuator features a rising stem design for optimal performance, equipped with manual emergency operation, limit switches for open and closed positions, and torque switches for added safety. Its dimensions ensure compatibility with 32-inch valves, providing a torque of 2567 lbf/in. Certified to ISO 9001:2008 standards, this actuator meets the highest quality requirements for seamless integration into various systems.

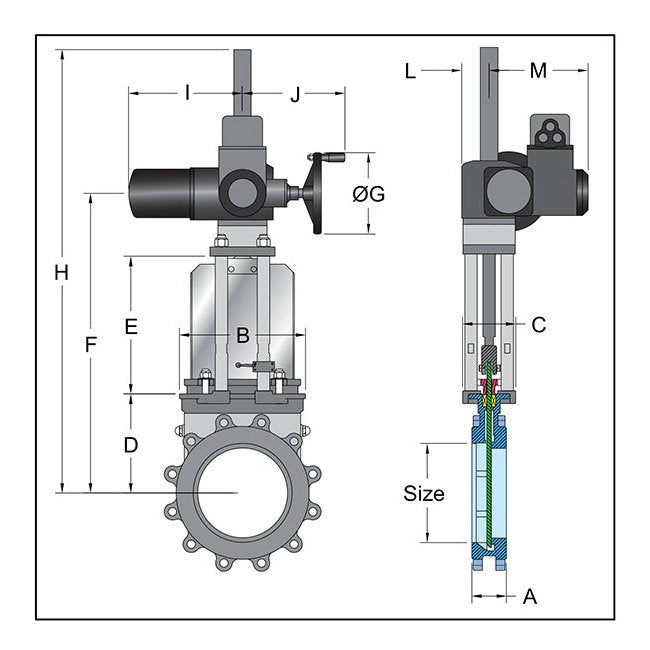

Product Specifications
Dimensions Diameter G
15 3/4 in
Dimensions Dimension A
4 21/64 in
Dimensions Dimension B
39 31/32 in
Dimensions Dimension C
12 39/64 in
Dimensions Dimension D
31 9/64 in
Dimensions Dimension E
38 37/64 in
Dimensions Dimension F
76 11/16 in
Dimensions Dimension H
119 11/32 in
Dimensions Dimension I
15 5/32 in
Dimensions Dimension J
13 1/16 in
Dimensions Dimension L
3 35/64 in
Dimensions Dimension M
11 7/32 in
Dimensions Size
32 in
Dimensions Torque
2567 lbf/in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
