Sure Flow 36 Inch Electric Actuator for Knife Gate Valves
Sure Flow 36 Inch Electric Actuator for Knife Gate Valves
SKU:KNI-02e656
Experience precision control with the Sure Flow 36 Inch Electric Actuator for Knife Gate Valves. ISO 9001:2008 certified.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Sure Flow 36 Inch Electric Actuator for Knife Gate Valves
$799.99
Quantity: 1
Claim Your Seller Account
Sure Flow 36 Inch Electric Actuator for Knife Gate Valves
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow 36 Inch Electric Actuator is a top-of-the-line solution for precise valve control in industrial settings. Equipped with a rising stem, this actuator features a standard electric motor with manual emergency operation, limit switches for open/closed positions, and torque switches for efficient performance. With dimensions meeting industry standards, including a torque of 2876 lbf/in, this electric actuator is crafted for durability and reliability. Certified with ISO 9001:2008 by Intertek, it ensures quality compliance with global standards, making it an ideal choice for government and institutional procurement needs.
Ready to Grow Without Cash Flow Constraints?

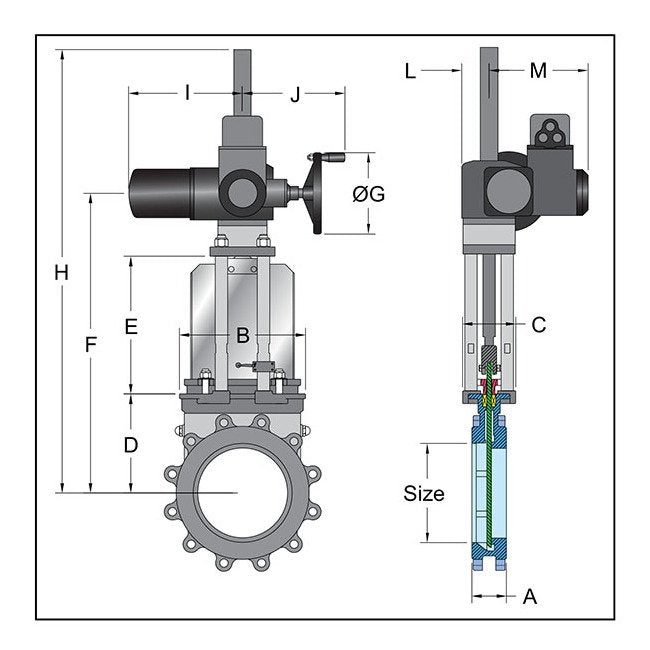

Product Specifications
Dimensions Diameter G
15 3/4 in
Dimensions Dimension A
4 21/64 in
Dimensions Dimension B
40 15/16 in
Dimensions Dimension C
12 39/64 in
Dimensions Dimension D
35 1/4 in
Dimensions Dimension E
42 51/64 in
Dimensions Dimension F
84 59/64 in
Dimensions Dimension H
127 9/16 in
Dimensions Dimension I
15 5/32 in
Dimensions Dimension J
13 1/16 in
Dimensions Dimension L
3 35/64 in
Dimensions Dimension M
11 7/32 in
Dimensions Size
36 in
Dimensions Torque
2876 lbf/in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
