Sure Flow 4 Inch Bleed and Flushing Ring

Sure Flow 4 Inch Bleed and Flushing Ring

LIN-d57f44

Ensure reliability with the Sure Flow 4 Inch Bleed and Flushing Ring, designed for high-pressure applications with Stainless Steel construction.

$129.99
$129.99
Sale

Initiate Order

Sure Flow 4 Inch Bleed and Flushing Ring

Sure Flow 4 Inch Bleed and Flushing Ring

$129.99

Quantity: 1

Claim Your Seller Account

Sure Flow 4 Inch Bleed and Flushing Ring

Sure Flow 4 Inch Bleed and Flushing Ring

$129.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Sure Flow 4 Inch Bleed and Flushing Ring is a durable solution designed to handle high pressures and temperatures in industrial settings. Constructed from high-quality Stainless Steel materials and meeting ASME Class 150 and ISO 9001:2008 standards, this ring ensures reliability and safety. With a pressure rating of 720 psi at 100°F for Water, Oil, Gas (WOG) applications, this ring offers superior performance. Additional features include threaded or socket-weld taps for easy installation and compliance with industry standards like ASME B16.5 and ASME B16.20.

Product Specifications

Additional Information Additional Information
Sure Flow Equipment Bleed Rings and Flushing Rings are produced in strict accordance with the following codes of practice:ASME B16.5ASME B16.20ASME B16.47 (For larger diameter flanges)

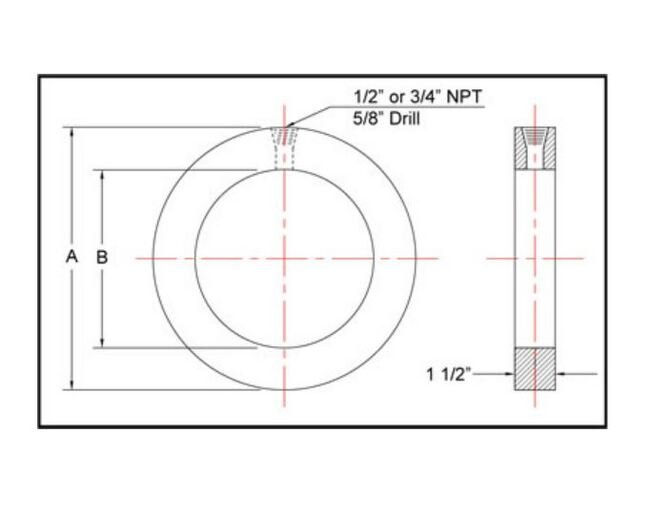

Dimensions Dimension A
7 in
Dimensions Dimension B
4 1/2 in
Dimensions Size
4 in
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 150 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Standard with 125-250 AARH Serrated FinishHigher ASME pressure ratings availableLarger sizes availableManufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
720 psi
Operating Pressures And Temperatures Pressure At 422 Degree Fahr
300 psi
Specifications Material
Stainless Steel
Specifications Prefix Size
0400
Specifications Standard Material
SA516 Gr.70304 Stainless Steel316 Stainless Steel
Specifications Thread Size
1/2 in | 3/4 in
