Sure Flow 4 Inch Tee Strainer
Sure Flow 4 Inch Tee Strainer
SKU:TEM-a2186a
Custom fabricated Sure Flow Tee Strainer for effective particle removal in pipelines, offering pump and valve protection. Compliant with ASME standards and ISO 9001:2008 certification.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Sure Flow 4 Inch Tee Strainer
$399.99
Quantity: 1
Claim Your Seller Account
Sure Flow 4 Inch Tee Strainer
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

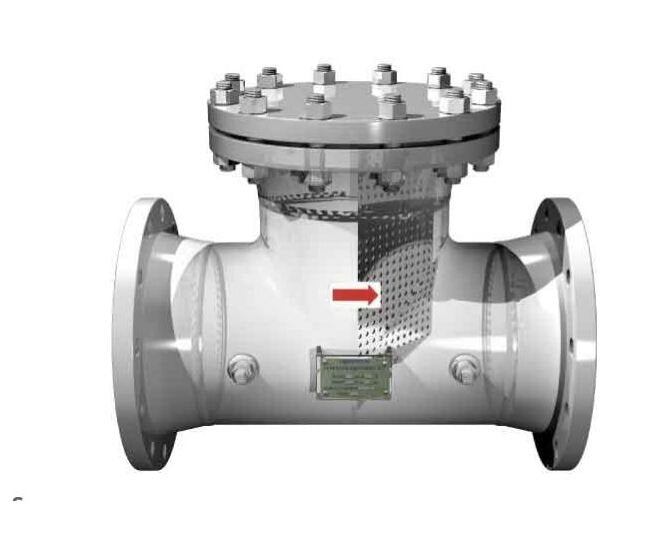

The Sure Flow Tee Strainer is a custom fabricated compact strainer designed to effectively remove foreign particles from pipelines, ensuring optimal protection for pumps, valves, and associated equipment. Constructed from durable carbon or stainless steel materials, this strainer can also be customized to meet specific requirements, including different end connections and accessories. With dimensions compliant with American Society of Mechanical Engineers (ASME) standards, and manufactured under ISO 9001:2008 certification, the Sure Flow Tee Strainer offers reliability and performance in industrial applications.
Product Specifications
Additional Information Additional Information
When ordering specify:Type - Straight Flow, Angled Flow, Angled ModifiedNominal Pipe SizeFlange Rating and FacingPressure Rating and FacingCorrosion Conditions, if any (type of materialPerforation (particle retention)

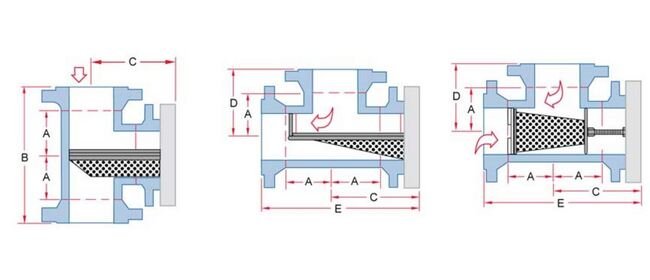

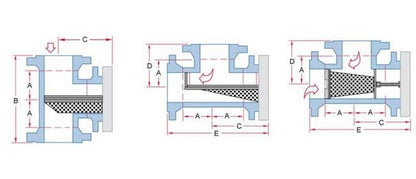

Dimensions Dimension A
4 1/8 in
Dimensions Dimension B For American Society Of Mechanical Engine
18 1/2 in
Dimensions Dimension C For American Society Of Mechanical Engine
11 3/4 in
Dimensions Dimension D For American Society Of Mechanical Engine
9 1/4 in
Dimensions Dimension E For American Society Of Mechanical Engine
21 in
Dimensions Pipe Size
4 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Flanges and bodies are designed to meet Section 1 of American Standard Code for Pressure Piping, ASA B31.1.Manufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
