Sure Flow 4" Stainless Steel Paddle Spacer - ASME Class 600

Name: Sure Flow 4" Stainless Steel Paddle Spacer - ASME Class 600
Brand: Sure Flow Equipment, Inc.
SKU: LIN-4b588f
Price: 49.99 USD
Availability: OutOfStock

SKU:LIN-4b588f

High-quality 4" Stainless Steel Paddle Spacer for ASME Class 600 applications, withstands up to 1440 psi at 100°F. Enhance your piping system now!

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

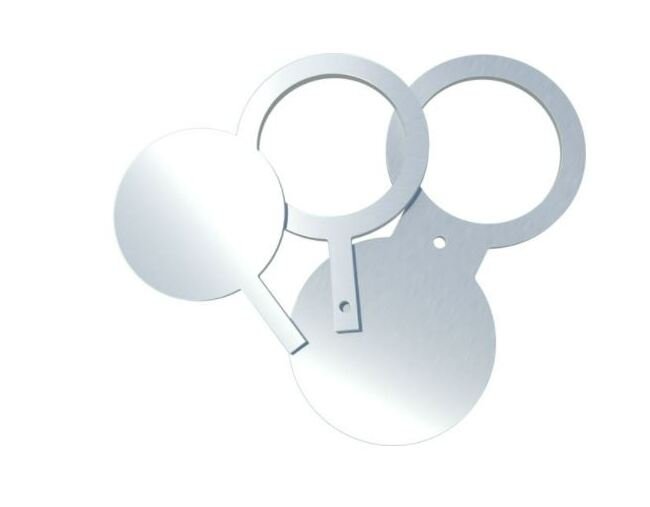

The Sure Flow 4" Stainless Steel Paddle Spacer is a durable and reliable component designed for ASME Class 600 applications. Made from high-grade stainless steel, this paddle spacer can withstand pressures up to 1440 psi at 100°F, making it ideal for water, oil, and gas environments. With precision engineering and adherence to industry standards, this paddle spacer guarantees seamless operation and easy installation. Upgrade your piping system with confidence using this top-quality paddle spacer.

Product Specifications

Additional Information Additional Information

One coat of standard shop primer will be applied to all carbon steel Line Blinds unless specified differently.Mill finish is standard. Other surface finishes are available. Contact factory for options. Standard materials are: SA516 Gr.70304 Stainless Steel316 Stainless Steel Other alloys can be furnished upon requestSure Flow Equipment Line Blinds are produced in strict accordance with the following codes of practice: ASME B16.48ASME B16.5ASME B16.20ASME B16.47 (For larger diameter flanges)

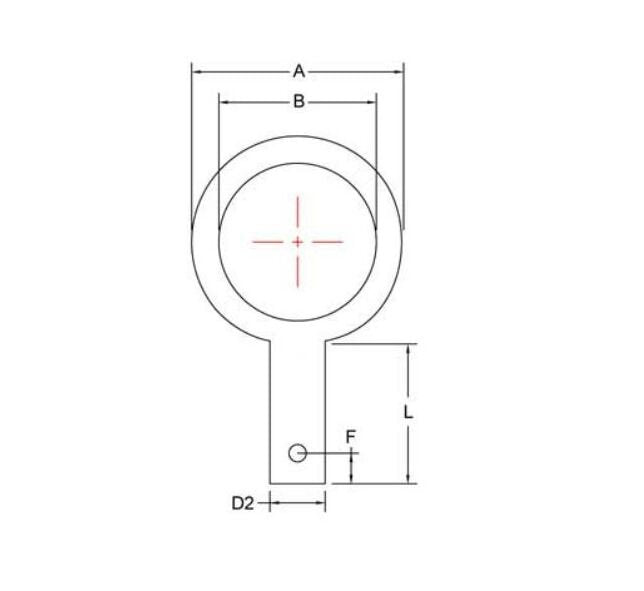

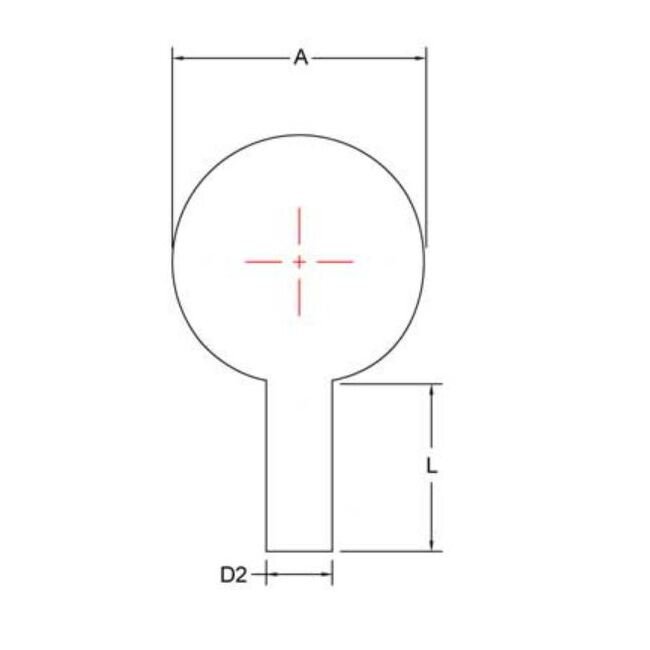

Dimensions Diameter E

1 in

Dimensions Dimension A

7 1/2 in

Dimensions Dimension B

4 1/4 in

Dimensions Dimension C

8 1/2 in

Dimensions Dimension D1

3 in

Dimensions Dimension D2

1 in

Dimensions Dimension F

1 in

Dimensions Dimension L

4 in

Dimensions Size

4 in

Dimensions Thickness

5/8 in

Industry Standardscertifications Industry Standardscertification

American Society of Mechanical Engineers (ASME) Class 600 | International Organization for Standardization (ISO) 9001:2008 (Intertek)

Note Note

Higher ASME pressure ratings availableLarger sizes availableManufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.

Operating Pressures And Temperatures Pressure At 100 Degree Fahr

1440 psi

Operating Pressures And Temperatures Pressure At 489 Degree Fahr

600 psi

Specifications Material

Stainless Steel

Specifications Prefix Size

0400

Sure Flow 4" Stainless Steel Paddle Spacer - ASME Class 600
