Sure Flow 40 Inch Pneumatic Actuator
Sure Flow 40 Inch Pneumatic Actuator
SKU:KNI-ea119a
High-quality 40-inch pneumatic actuator for industrial operations. Durable, reliable, and compliant with ISO 9001:2008 standards.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
Sure Flow 40 Inch Pneumatic Actuator
$1,299.99
Quantity: 1
Claim Your Seller Account
Sure Flow 40 Inch Pneumatic Actuator
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow 40 Inch Pneumatic Actuator is a high-quality double-acting cylinder ideal for on-off operations in industrial settings. Featuring an aluminum jacket, stainless steel piston rod, and a nitrile-coated steel piston, this actuator offers durability and reliable performance. With industry certifications including ISO 9001:2008, optional features like hard-anodized covers, and compatibility with various instrumentation options, it meets the stringent standards required for government and institutional procurement.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
For valves installed in a horizontal position, we recommend U-type support plates and/or actuator support.

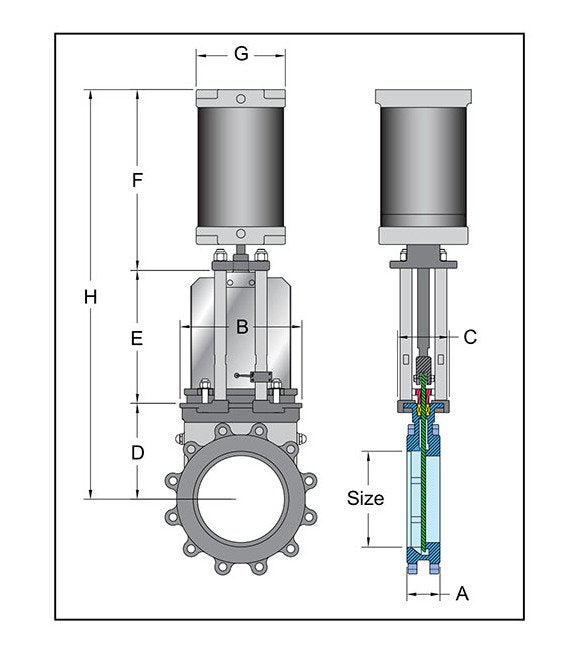

Dimensions Dimension A
4 21/64 in
Dimensions Dimension B
45 9/32 in
Dimensions Dimension C
12 19/32 in
Dimensions Dimension D
38 25/64 in
Dimensions Dimension E
48 15/64 in
Dimensions Dimension F
50 19/32 in
Dimensions Dimension G
20 17/64 in
Dimensions Dimension H
137 13/64 in
Dimensions Size
40 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Instrumentation On Request Instrumentation On Request
PositionersSolenoid valvesFlow regulatorsAir preparation units
Options Options
Hard anodized jacket and coversOver / Undersized cylinderStainless steel jacket and coversManual overrideFail safe systemTravel stops
Specifications Air Connection
3/4 in
Specifications Maximum Supply Pressure
142 psi
Specifications Minimum Supply Pressure
50 psi
Specifications Standard Cylinder
C400/1030
Specifications Weight
2337 lb
