Sure Flow 48 Inch Electric Actuator for Knife Gate Valves
Sure Flow 48 Inch Electric Actuator for Knife Gate Valves
SKU:KNI-b5c015
Sure Flow 48 Inch Electric Actuator for Knife Gate Valves, featuring rising stem design, manual emergency operation, limit switches, torque switches, and ISO 9001:2008 (Intertek) certified.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Sure Flow 48 Inch Electric Actuator for Knife Gate Valves
$799.99
Quantity: 1
Claim Your Seller Account
Sure Flow 48 Inch Electric Actuator for Knife Gate Valves
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow 48 Inch Electric Actuator is designed for precision control in knife gate valve applications. Featuring a rising stem design, this actuator comes equipped with manual emergency operation, limit switches for open and closed positions, and torque switches. With dimensions carefully engineered for optimal performance, including a torque of 5753 lbf/in, this electric actuator ensures reliable and efficient valve operation. It meets the stringent quality standards of the International Organization for Standardization (ISO) 9001:2008 (Intertek), guaranteeing superior performance and durability for institutional and government procurement requirements.

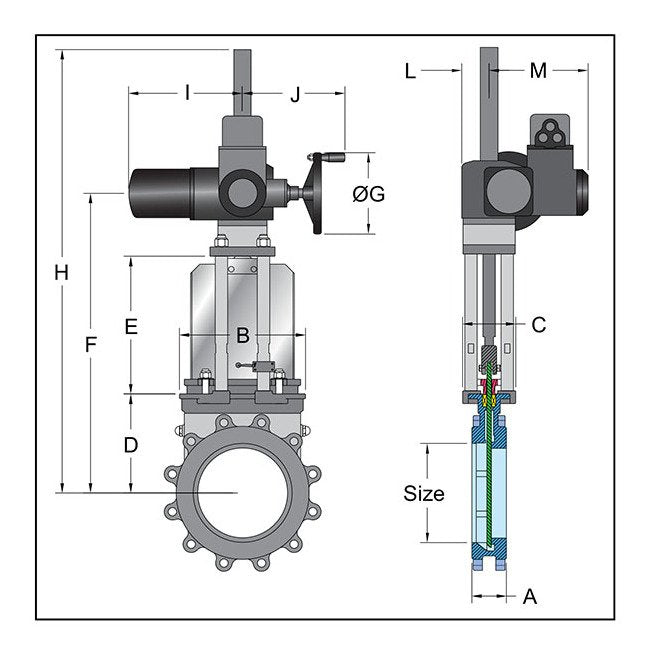

Product Specifications
Dimensions Diameter G
19 11/16 in
Dimensions Dimension A
5 29/32 in
Dimensions Dimension B
55 1/8 in
Dimensions Dimension C
17 23/32 in
Dimensions Dimension D
48 27/64 in
Dimensions Dimension E
58 15/32 in
Dimensions Dimension F
119 3/32 in
Dimensions Dimension H
170 15/32 in
Dimensions Dimension I
20 5/64 in
Dimensions Dimension J
13 63/64 in
Dimensions Dimension L
4 17/32 in
Dimensions Dimension M
12 13/64 in
Dimensions Size
48 in
Dimensions Torque
5753 lbf/in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
