Sure Flow 5" Ductile Iron Elastic Swing Foot Valve with Flanged End
Sure Flow 5" Ductile Iron Elastic Swing Foot Valve with Flanged End
SKU:DOU-f7b8f9
Reliable Sure Flow 5" Elastic Swing Foot Valve for uninterrupted flow in municipal and industrial settings.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Sure Flow 5" Ductile Iron Elastic Swing Foot Valve with Flanged End
$299.99
Quantity: 1
Claim Your Seller Account
Sure Flow 5" Ductile Iron Elastic Swing Foot Valve with Flanged End
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow FVCEXF125 5" Ductile Iron Elastic Swing Foot Valve with Flanged End Connections is ideal for municipal and industrial applications. Featuring an epoxy-coated internal body and optional special coatings, this valve ensures 100% uninterrupted flow with a steel-reinforced insert in the one-piece molded disc. Designed for both horizontal and vertical orientations, it allows for easy repair without valve removal, making it a reliable choice for continuous flow applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
The one-piece disc hinge and flapper can be repaired without removal of the valve from the line. The Elastic Swing Foot Valve is designed for continuous flow applications and is not recommended for reciprocating pumps. The Elastic Swing Foot Valve can be installed in a vertical or horizontal pipeline.

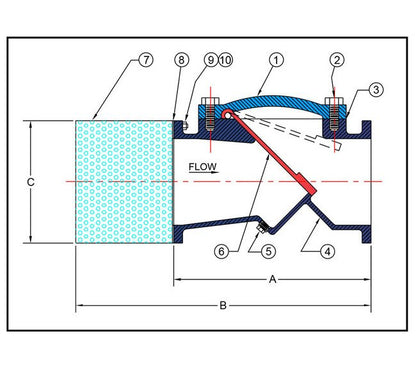

Construction Construction
Item - 1Description - CoverItem - 2Description - Cover BoltsItem - 3Description - GasketItem - 4Description - Cast BodyItem - 5Description - DrainItem - 6Description - DiscItem - 7Description - Screen AssemblyItem - 8Description - Plate FlangeItem - 9Description - StudsItem - 10Description - Nuts
Dimensions Dimension A
13 3/4 in
Dimensions Dimension B
16 3/4 in
Dimensions Dimension C
10 1/4 in
Dimensions Drain Size
1 in
Dimensions Prefix Size
0500
Dimensions Shipping Weight
120 lb
Dimensions Size
5 in
Dimensions Valve Flow Coefficient Cv
578
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 125 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Valve comes standard with 1/8" pert. Stainless Steel Screen. Options are available.Horizontal Flow: Valve must be installed with cover on top to ensure proper operation.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
200 psi
Specifications Material
Ductile Iron
Specifications Orientation
Horizontal | Vertical
