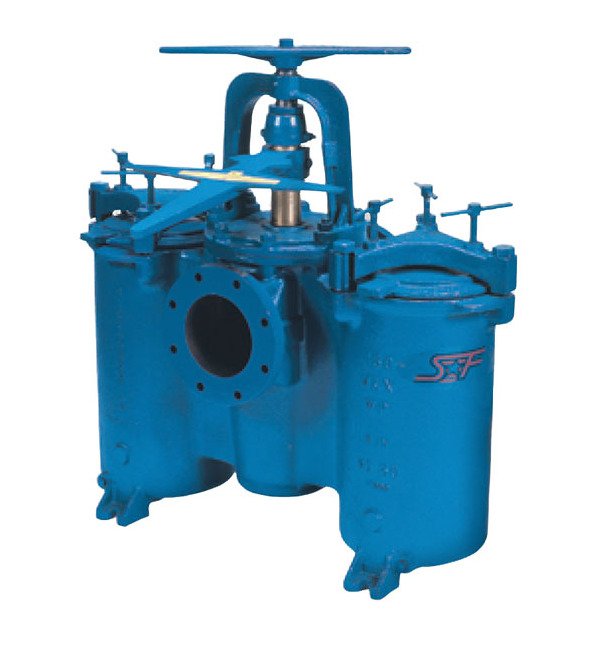

Sure Flow 5 Inch Bronze Duplex Strainer
Sure Flow 5 Inch Bronze Duplex Strainer
SKU:DUP-c158b5
Reliable Sure Flow 5in Bronze Duplex Strainer for efficient flow control in industrial settings. ASME CL.150 & ISO 9001:2008 certified.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Sure Flow 5 Inch Bronze Duplex Strainer
$399.99
Quantity: 1
Claim Your Seller Account
Sure Flow 5 Inch Bronze Duplex Strainer
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow 5 Inch Bronze Duplex Strainer is a robust and reliable solution for industrial applications. Built with high-quality bronze materials and designed for easy operation, this strainer features a pressure-rated plug valve with integral straining baskets. Switching between baskets is quick and tool-free, ensuring seamless flow control. With ASME CL.150 and ISO 9001:2008 certifications, this strainer meets international standards for quality and performance.
Product Specifications
Additional Information Additional Information
Switching the flow from one basket to the other is accomplished by moving the operating handle through a 90 degree arc. The design is such that it is impossible for this operation to stop the flow because of the unique port design in the diverter plug. The entire switching operation takes less than 30 seconds. No tools are needed. The plug is automatically positioned each time in exactly the right spot by integral stops.Before operating the handle a manual, integral lifting jack, built into the strainer is used to lift the diverter plug off of its seat. After the switching operation the lifting jack is used to reseat the plug. The lifting jack is specially designed to lift and seat the plug easily, even under high pressures. A built-in stop limits the distance the diverter plug can be raised. This minimizes the possibility of material bypassing the plug while it is rotated. It also prevents debris from building up under the plug and making it difficult to reseat.Other important features of the Sure Flow Duplex Basket Strainers design include quick opening, swing away yoke design covers. No tools are required to remove the covers for quick and easy access to the strainer baskets, and they go back on just as fast as they came off.Draining of the basket chambers is simplified with the standard NPT drain taps. All sizes are provided with mounting legs to bolt the strainer to the floor for a rock solid installation.The Sure Flow Duplex Basket Strainer is your best choice for most applications. Its rugged design and ease of operation have made it the duplex strainer of choice around the world in hundreds of different industries.
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Manufacturer reserves the right to modify dimensions, materials, or design. Please contact Sure Flow Equipment Inc. for certifications.
Specifications 5 And 6 Inch In Rating At 100 Degree Fahrenheit F
200 psig
Specifications American Society Of Mechanical Engineers Asme Cl1
0500 psig
Specifications Body And Cartridge Material
Bronze (BZ)
Specifications Connection Type
Flanged CL.150
Specifications Plug Material
Bronze (BZ) | Iron (CI)
Specifications Prefix Size
0500
Specifications Screen Opening
156 in
Specifications Seat Material
Buna N
Specifications Size
5 in
Specifications Valve Flow Coefficient Cv
300
